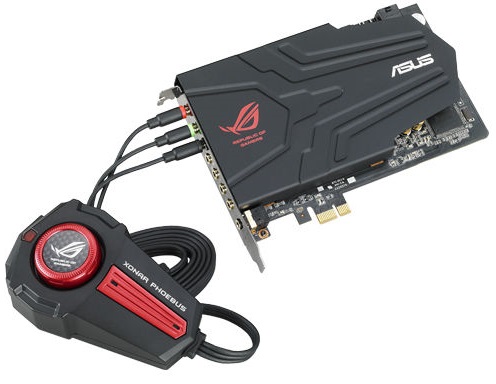

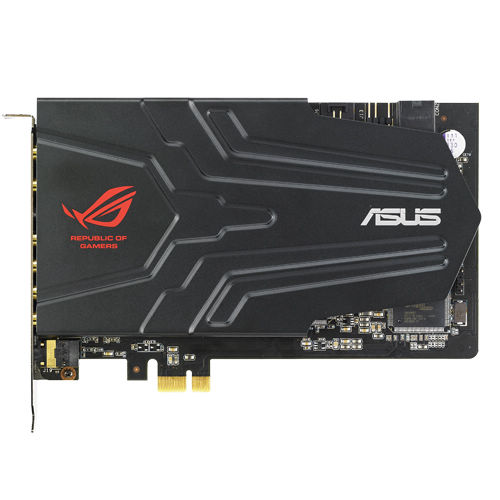

ASUS ROG Xonar Phoebus
Bus Veri Yolu Uyumluluğu
|
PCI Express
|
|
Ses Performansı
|
Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
|
118 dB
|
Output Signal-to-Noise Ratio (A-Weighted) (Headphone-out) :
|
110 dB
|
Input Signal-to-Noise Ratio (A-Weighted) :
|
118 dB
|
Output THD+N at 1kHz (Front-out) :
|
>0.00039 %(-108 dB)
|
Output THD+N at 1kHz (Headphone-out) :
|
>0.001 %(300 dB)
|
Input THD+N at 1kHz :
|
>0.0003 %(-110 dB)
|
Frequency Response (-3dB, 24bit/96KHz input) :
|
10 Hz to 48 KHz
|
Output/Input Full-Scale Voltage :
|
Unbalanced Output : 2.2 Vrms (3 Vp-p)
|
Headphone : 7 Vrms (9.9 Vp-p)
|
|
Yonga Seti
|
Audio Processor :C-Media CMI8888DHT High-Definition Sound Processor (Max. 192kHz/24bit)
|
|
Örnekleme Hızı ve Çözümlemesi
|
Analog Playback Sample Rate and Resolution :
|
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
|
S/PDIF Digital Output :
|
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
|
S/PDIF Digital Input :
|
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
|
ASIO 2.2 Driver Support :
|
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit with very low latency
|
|
ASUS´a Özel Özellikler
|
Dolby® Technologies : Dolby® Home Theater v4
|
Smart Volume Normalizer™
|
Xear Surround™
|
Magic Voice™
|
FlexBass™
|
GX 3.0 Game Audio Engine
|
|
Aksesuarlar
|

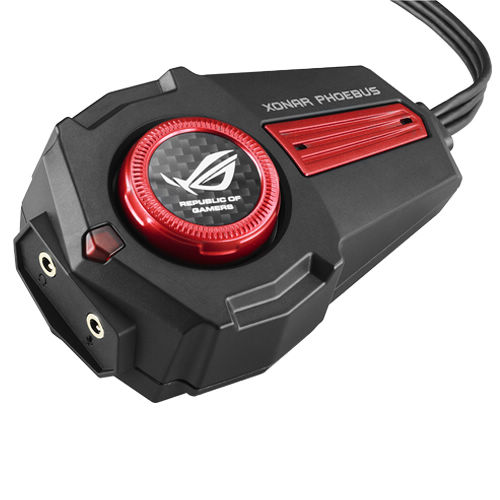

Control box x 1
|
Driver CD x 1
|
Quick Start Guide x 1
|
S/PDIF optical adaptors x 1
|
ATX 4P-to-6P power cable x 1
|
|
Garanti: 24 Ay
|
