ASUS Xonar U7 Echelon Edition
Bus Veri Yolu Uyumluluğu
|
USB 2.0 high-speed/ USB 1.0 for playback
|
|
Ses Performansı
|
Output Signal-to-Noise Ratio (A-Weighted) (Front-out) :
|
114 dB
|
Input Signal-to-Noise Ratio (A-Weighted) :
|
110 dB
|
Output THD+N at 1kHz (Front-out) :
|
>0.0006 %(-104 dB)
|
Frequency Response (-3dB, 24bit/96KHz input) :
|
10 Hz to 46 KHz
|
Output/Input Full-Scale Voltage :
|
Line output (RCA, 3.5) : 1 Vrms (2.828 Vp-p)
|
Headphone output : 1.3 Vrms (3.677 Vp-p)
|
|
Yonga Seti
|
Audio Processor :C-Media 6632A High-Performance Sound Processor (Max. 192KHz/24bit)
|
|
Digital-to-analog Converter(DAC)
|
Cirrus Logic CS4398
|
Cirrus Logic CS4362
|
|
Örnekleme Hızı ve Çözümlemesi
|
Analog Playback Sample Rate and Resolution :
|
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
|
Analog Recording Sample Rate and Resolution :
|
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
|
S/PDIF Digital Output :
|
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
|
ASIO Driver Support :
|
44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
|
|
Bağlanılabilirlik
|

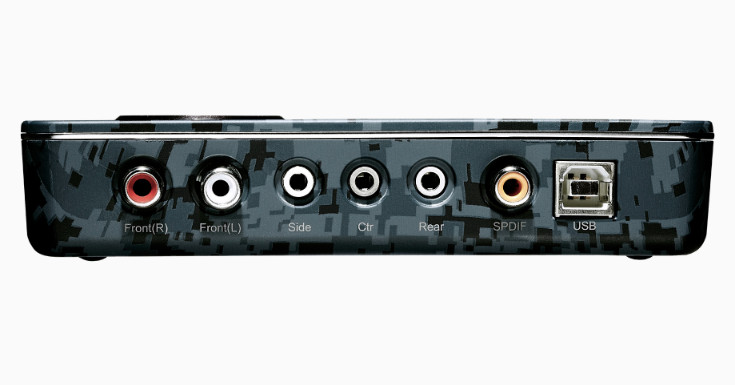

Analog Output
|
4 x 3.5 mm jack (1/8") (Headphone out /Side out/Center-Subwoofer out/Rear out)
|
2 x RCA (Un-Balanced)
|
Analog Input
|
1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
|
Digital
|
1 x S/PDIF out (1 x Coaxial)
|
ASUS´a Özel Özellikler
|
|
Dolby® Technologies : Dolby® Home Theater v4
|
|
İşletim Sistemi
|
Windows® 7 , 32bit/64bit
|
Windows® 8 , 32bit/64bit
|
Windows® XP , 32bit/64bit
|
Mac OS X ya da daha yüksek
|
|
Aksesuarlar
|
S/PDIF adapter x 1
|
USB cable x 1
|
Driver CD x 1
|
User manual x 1
|
Boyutlar
|
130 x 80 x 25 mm ( L x W x H )
|
|
Garanti: 24 Ay
|
