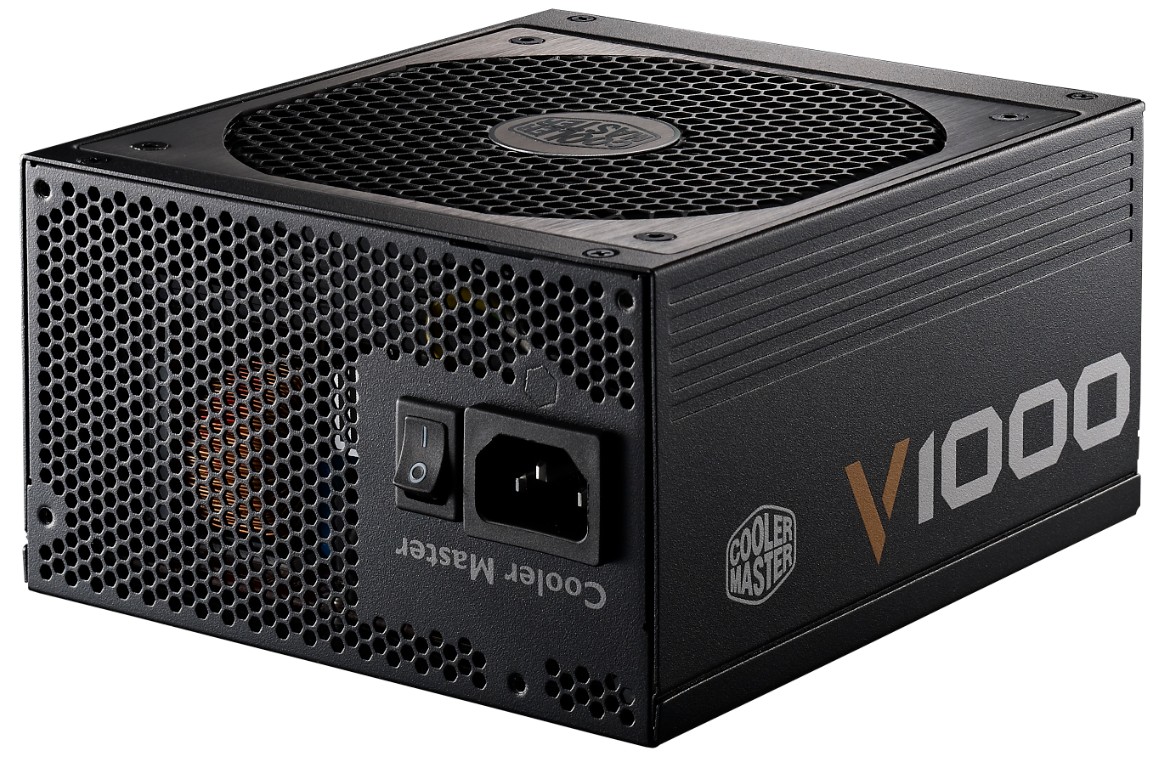

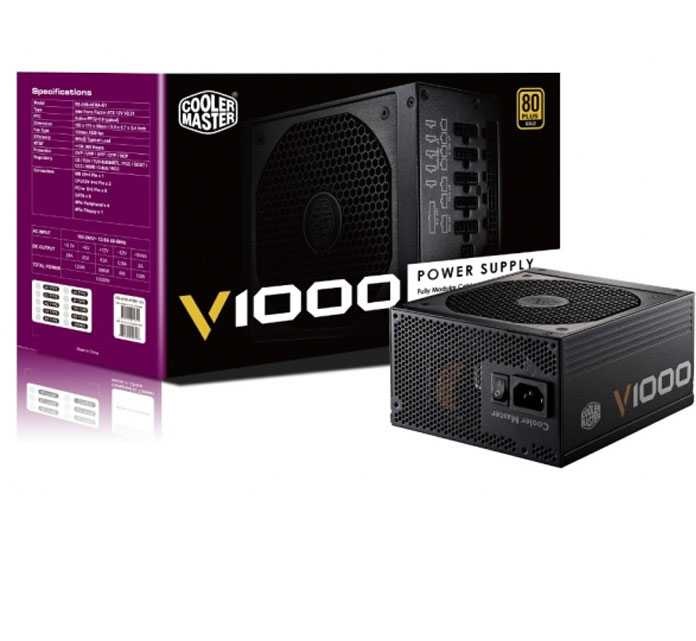

Model : RSA00-AFBAG1-EU
Type : Intel Form Factor ATX 12V V2.31
|
Boyutlar (W x L x H) : 150 x 170 x 86mm
|
Input Voltage: 90-264Vac (Auto Range)
|
Input Current : 12 - 6A
|
Input Frequency Range : 60 - 50Hz
|
PFC : Active PFC (>0.9)
|
Power Good Signal : 100-500ms
|
Hold Up Time : >17ms
|
Efficiency : 90% Typically
|
MTBF >100,000 Hours
|
Protection OVP/UVP/OPP/OTP/SCP
|
Output Capacity 1000W
|
Operation Temperature 0~40°C
|
Regulatory CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC
|

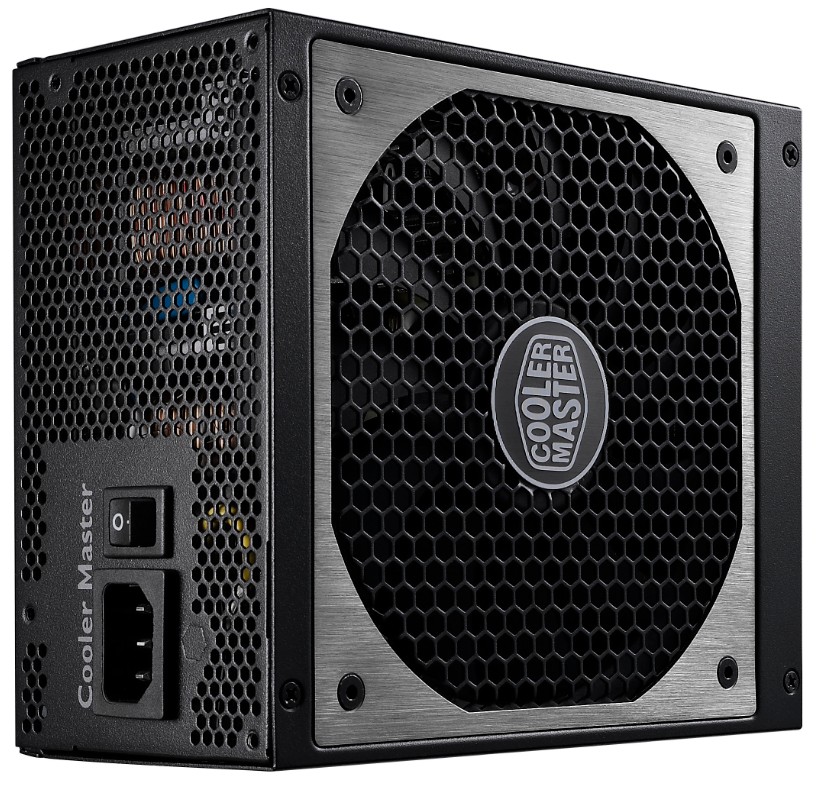

Fan Silent FDB 135mm
|
Certifications 80 Plus Gold
|

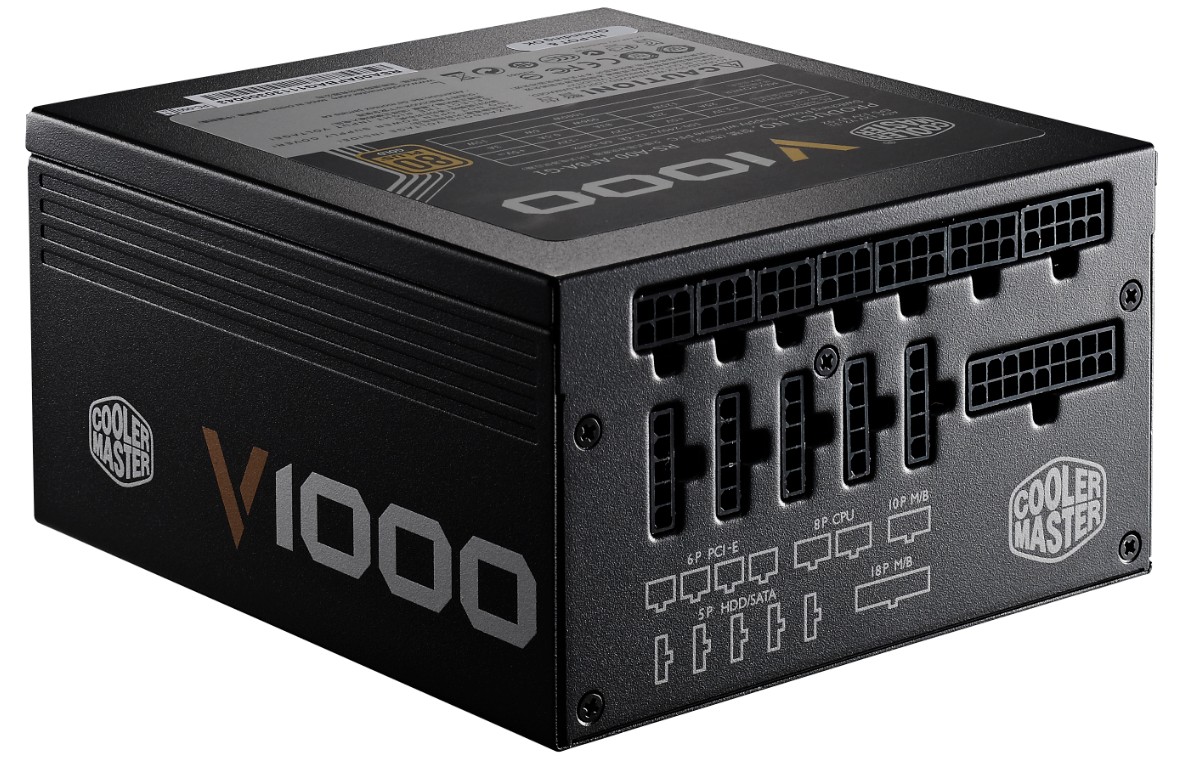

BAĞLANTI Kabloları:
|
M/B 20+4 Pin Connector : x 1
|
CPU 4+4 Pin : x 2
|
PCI-e 6+2 Pin : x 8
|
SATA : x 9
|
4 Pin Peripheral : x 4
|
4 Pin Floppy : x 1
|
|
Garanti: 2 YIL
|
