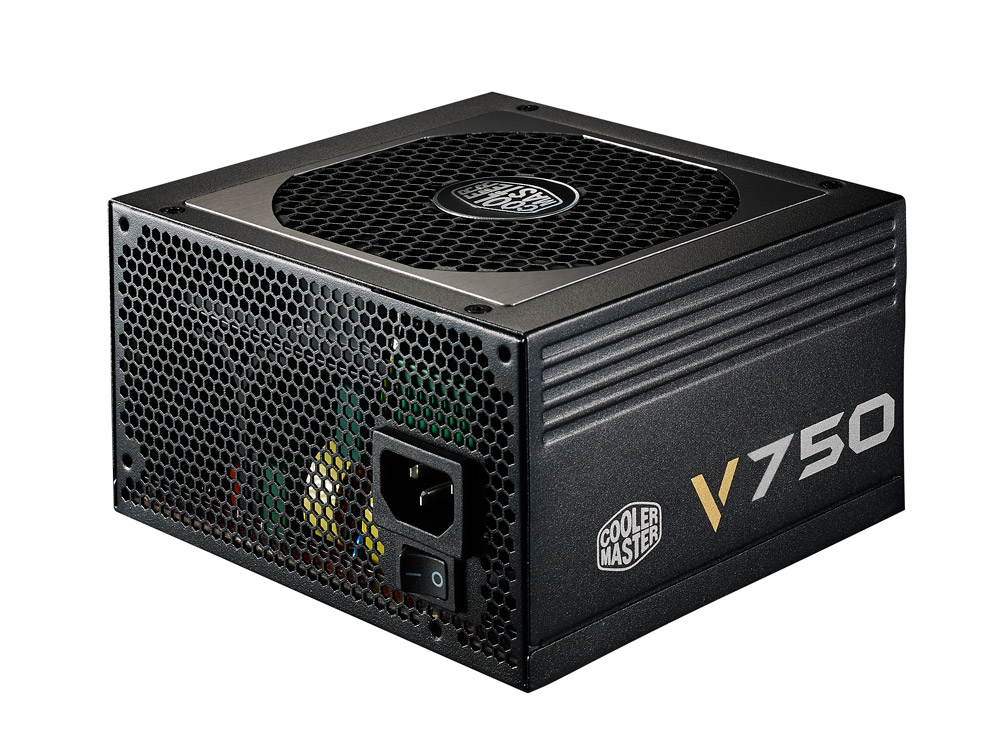

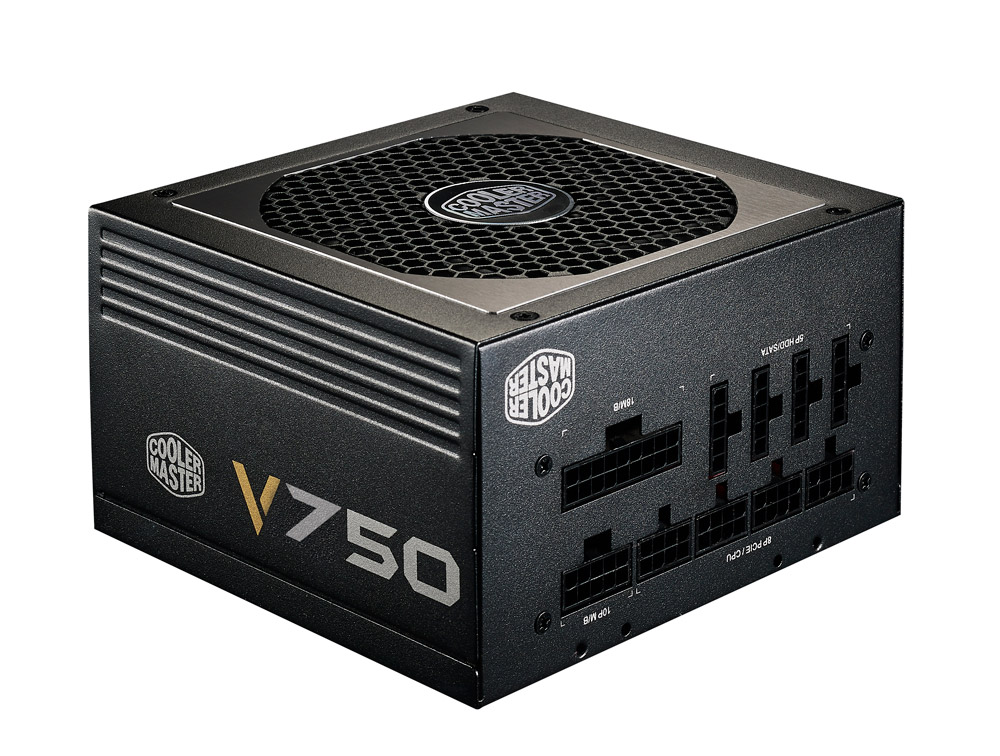

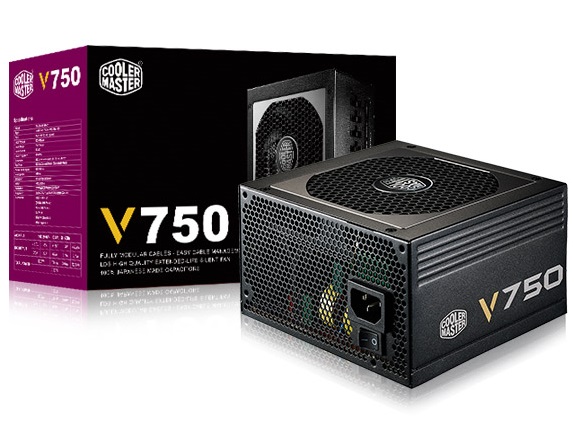

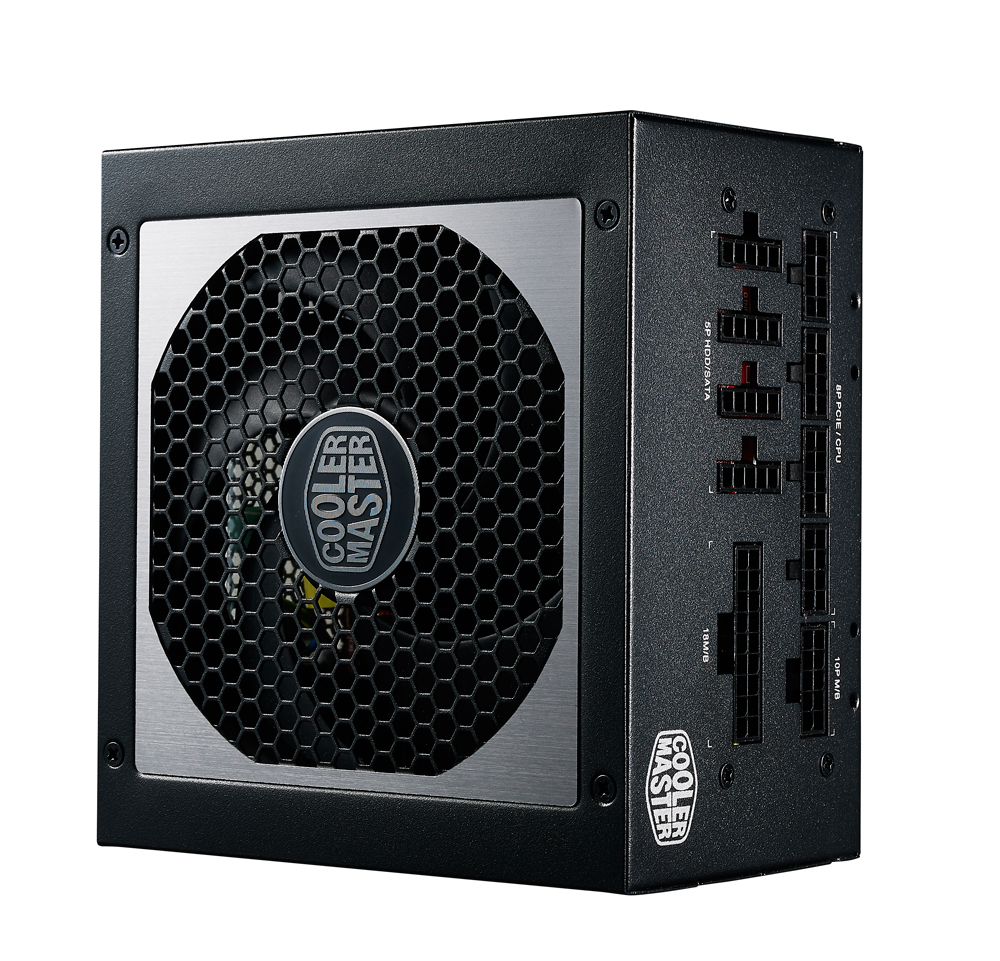

Model : RS750-AFBAG1-EU
ATX 12V v2.31
|
Fully Modular
|
Dimension (W x L x H) 140 x 150 x 86 mm
|
5.5 x 5.9 x 3.38 in
|
Input Voltage 100-240 Vac (Full Range)
|
Input Current 10 - 5A
|
Input Frequency Range 60 - 50Hz
|
PFC Active PFC (>0.9)
|
Power Good Signal 100-500ms
|
Hold Up Time >16ms
|
Efficiency 90% Typically
|
MTBF >100,000 Hours
|
Protection OVP/UVP/OPP/OTP/SCP/OCP
|
Output Capacity 750W
|
Operation Temperature 0~40°C
|
Regulatory CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC
|
Fan 120mm Silencio FP Fan
|
Certifications 80 Plus Gold
|
|
Bağlantılar:
|
Motherboard 20+4 Pin x1
|
CPU 12V 4+4 Pin x2
|
PCIe 6+2 Pin x4
|
SATA x8
|
4 Pin Peripheral x6
|
4 Pin Floppy x1
|
|
Garanti Süresi : 24 Ay
|
