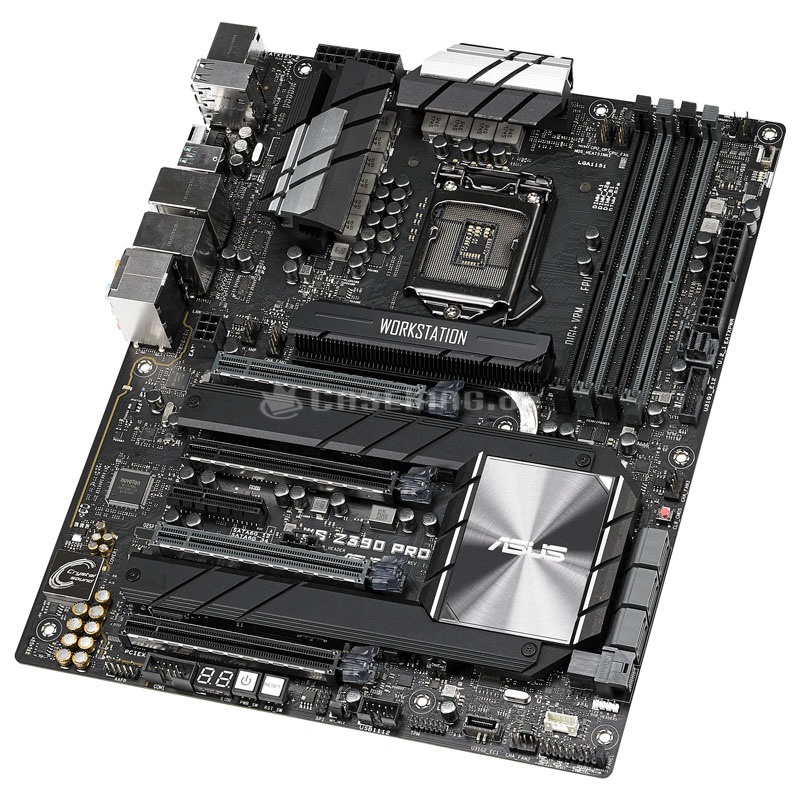

ASUS WS Z390 PRO
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: INTEL Z390 |
BELLEK: |
4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Memory |
Dual Channel Memory Architecture |
Supports Intel® Extreme Memory Profile (XMP) |
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
* Hyper DIMM support is subject to the physical characteristics of individual CPUs. |
GRAFİK: |
Integrated Graphics Processor- Intel® HD Graphics support |
Multi-VGA output support : HDMI/DisplayPort ports |
- Supports HDMI 2.0 with max. resolution 4096 x 2160 @ 60 / 24 Hz*1 |
- Supports DisplayPort with max. resolution 4096 x 2304 @ 24 Hz / 4096 x 2304 @ 60 Hz |
- Supports High Dynamic Range(HDR),Wide Color Gamut(Rec.2020),HDCP 2.2 |
Maximum shared memory of 1024 MB (for iGPU exclusively) |
Supports Intel® InTru? 3D, Quick Sync Video, Clear Video HD Technology, Insider? |
Supports up to 2 displays simultaneously |
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays |
ÇOKLU EKRAN KARTI DESTEĞi: |
Supports NVIDIA® Quad-GPU SLI? Technology *2 |
Supports NVIDIA® 4-Way SLI? Technology *2 |
Supports AMD Quad-GPU CrossFireX? Technology *2 |
Supports AMD 4-Way CrossFireX Technology *2 |
GENİŞLETME SLOTLARI: |
4 x PCIe 3.0 x16 (single at x16, dual at x16/x16 mode, triple at x16/x8/x8 mode or quad x8/x8/x8/x8 mode) |
1 x PCIe x4 (max at x4 mode) |
DEPOLAMA: |
2 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode)*3, |
2 x U.2 connector, |
6 x SATA 6Gb/s port(s) |
Support Raid 0, 1, 5, 10 |
Intel® Rapid Storage Technology supports*4 |
Intel® Optane? Memory Ready *5 |
LAN: |
Intel® I210-AT, 1 x Gigabit LAN Controller(s) |
Intel® I219-LM , 1 x Gigabit LAN |
Gigabit Intel® LAN Connection- 802.3az Energy Efficient Ethernet (EEE) appliance |
ASUS Turbo LAN Utility |
WIRELESS: |
Yok |
SES: |
Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3 |
- Impedance sense for front and rear headphone outputs |
- Supports : Jack-detection, Multi-streaming |
120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) |
USB: |
Intel® Z390 Chipset : |
6 x USB 3.1 Gen 2 port(s) (6 at back panel, ) |
Intel® Z390 Chipset : |
6 x USB 2.0/1.1 port(s) (4 at back panel, , 2 at mid-board) |
ASMedia® USB 3.1 Gen 2 controller : |
2 x USB 3.1 Gen 2 port(s) (Type-A + USB Type-CTM) |
ASMedia® USB 3.1 Gen 2 controller : |
2 x USB 3.1 Gen 1 port(s) |
ARKA PANEL: |
1 x DisplayPort |
1 x HDMI |
2 x LAN (RJ45) port(s) |
6 x USB 3.1 Gen 2 (5 x Type-A+1 x Type-C) |
4 x USB 2.0 (one port can be switched to USB BIOS Flashback) |
1 x USB BIOS Flashback Button(s) |
1 x 8-channel Audio I/O |
BOYUTLAR: |
ATX Form Factor |
30.5 cm x 24.4 cm |
Garanti: 36 Ay Asus Yetkili Servisinde |
