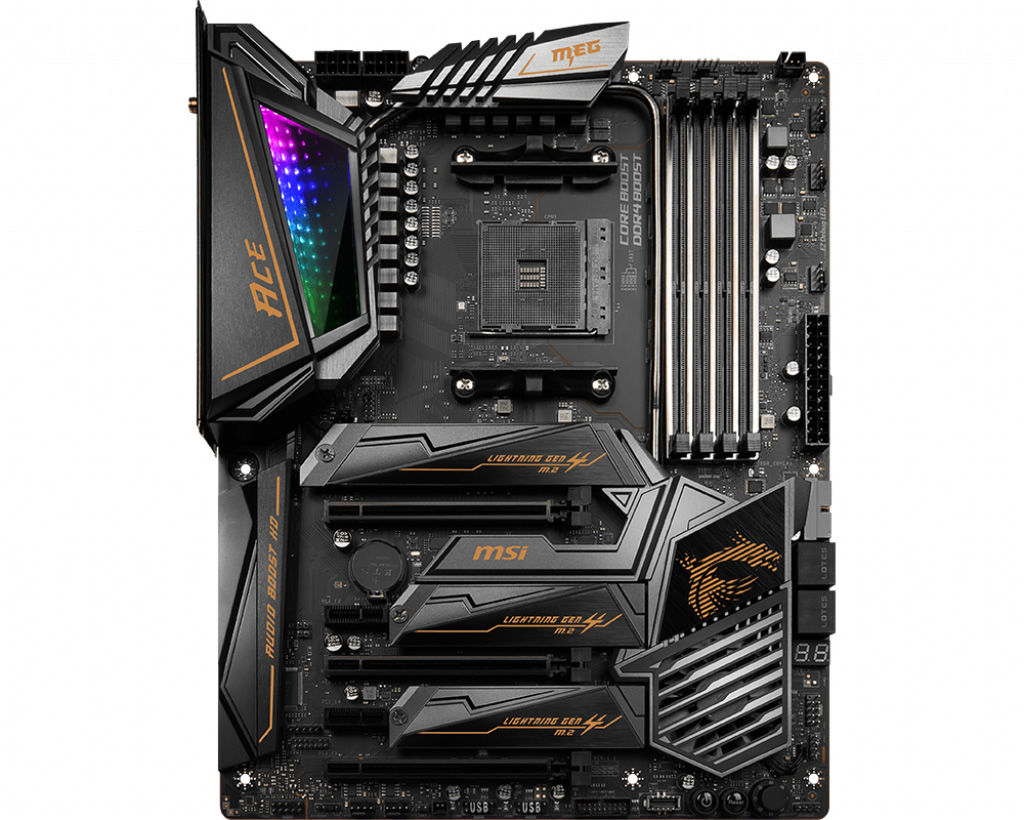

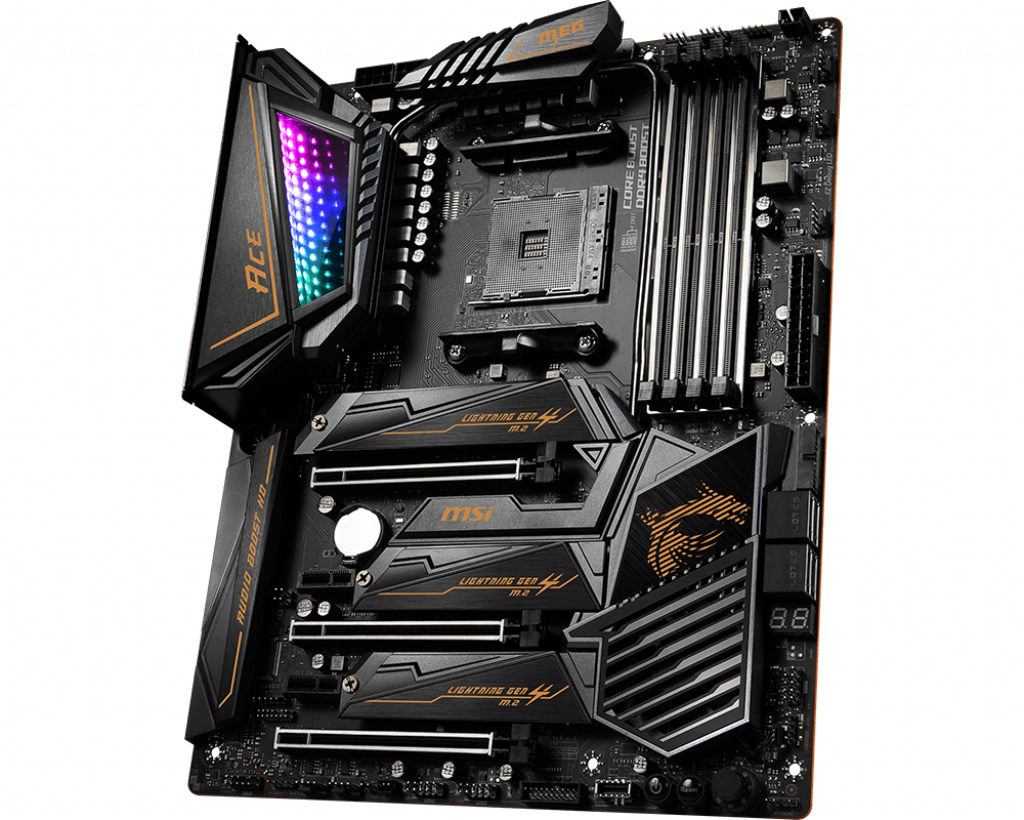

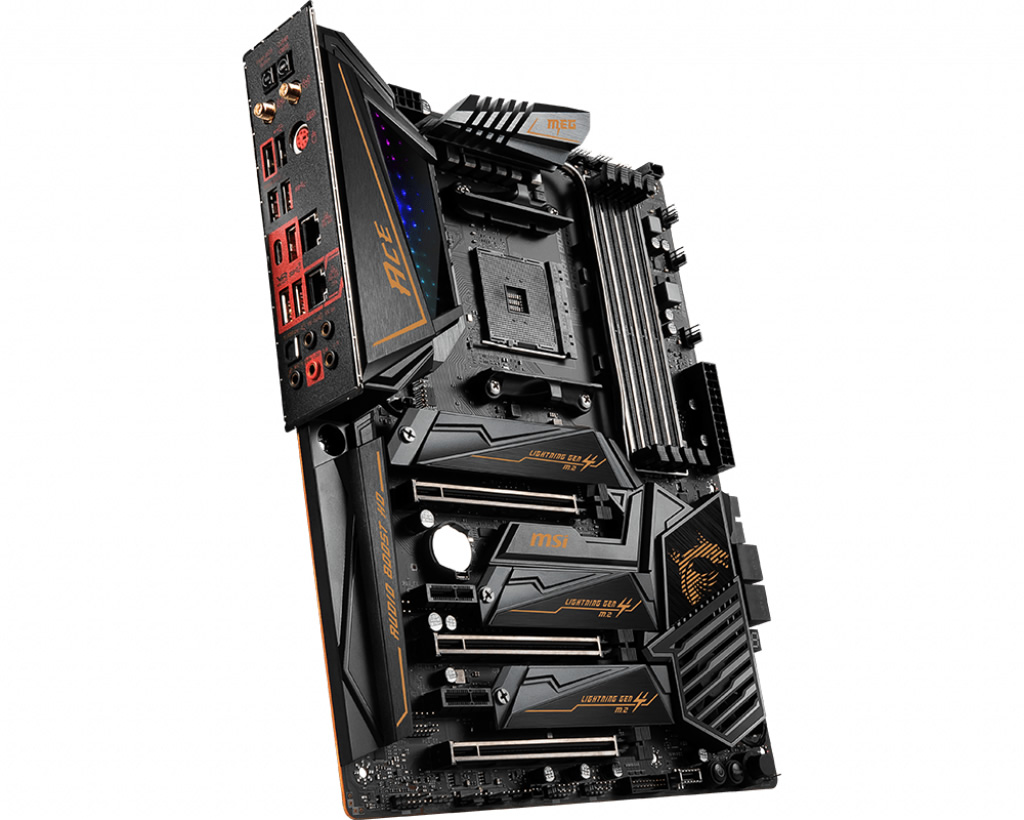

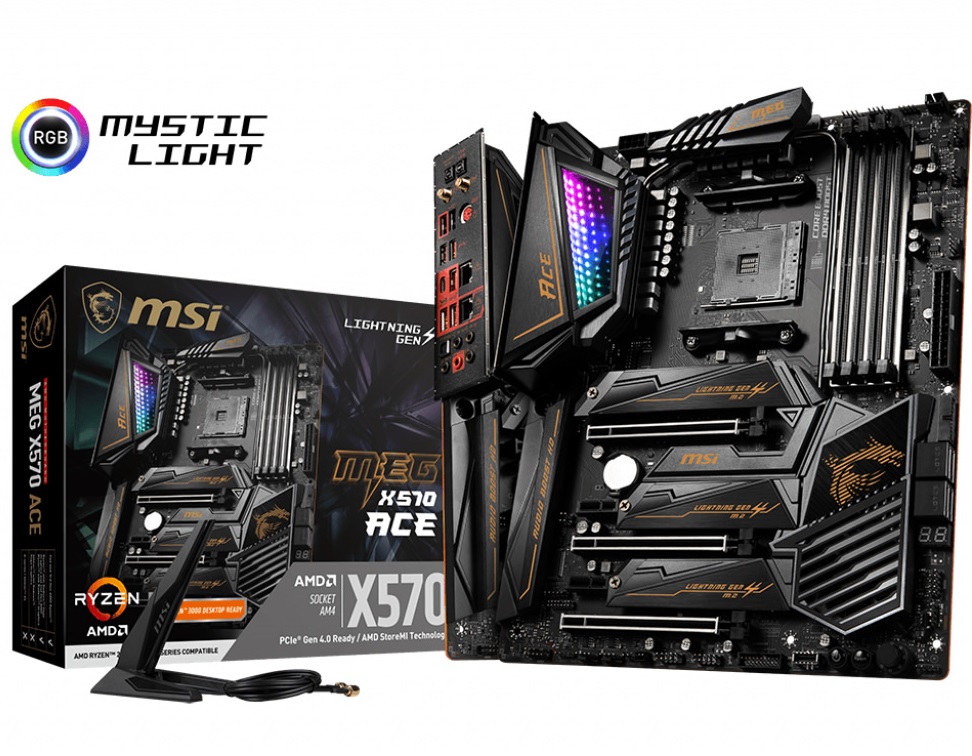

MSI MEG X570 ACE
Socket Türü: Socket AM4 |
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: AMD X570 |
BELLEK ÖZELLİKLERİ: |
4x DDR4 memory slots, support up to 128GB |
3rd Gen AMD Ryzen? Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 Mhz by A-XMP OC MODE |
2nd Gen AMD Ryzen? Processors, 1st and 2nd Gen AMD Ryzen? with Radeon? Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 /3600 Mhz by A-XMP OC MODE |
Dual channel memory architecture |
Supports non-ECC UDIMM memory |
Supports ECC UDIMM memory (non-ECC mode) |
Supports un-buffered memory |
GENİŞLETME SLOTLARI: |
2x PCIe 4.0/ 3.0 x16 slots (PCI_E1, PCI_E3) |
3rd Gen AMD Ryzen? support PCIe 4.0 x16/x0, x8/x8 modes |
2nd Gen AMD Ryzen? support PCIe 3.0 x16/x0, x8/x8 modes |
Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics support PCIe 3.0 x8 mode1 |
1x PCIe 4.0/ 3.0 x16 slot (PCI_E5, supports x4 mode) |
2x PCIe 4.0/ 3.0 x1 slots2 |
PCI_E3 slot is only available for 2nd and 3rd Gen AMD Ryzen? processors. |
The PCIe x1 slots can not be used simultaneously. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot. |
The speeds may vary for different devices |
MULTI GPU: |
Supports 2-Way NVIDIA® SLI? Technology |
Supports 3-Way AMD® CrossFire? Technology |
DEPOLAMA: |
AMD X570 Chipset |
4x SATA 6Gb/s ports |
2x M.2 slots (M2_2/ M2_3, Key M)1 |
Support PCIe 4.0/ 3.0 x4 and SATA 6Gb/s |
Support 2242/ 2260 /2280 storage devices |
AMD Processor |
1x M.2 slot (M2_1, Key M)1 |
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen?) |
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen?/ Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics) |
Supports 2242/ 2260 /2280/ 22110 storage devices |
RAID: |
AMD X570 Chipset |
Supports RAID 0, RAID 1 and RAID 10 |
SES: |
Realtek ALC1220 Codec |
7.1-Channel High Definition Audio |
Supports Optical S/PDIF output |
LAN: |
1x Intel WGI211AT Gigabit LAN controller |
1x Realtek RTL8125 2.5 Gbps LAN controller |
BOYUTLAR: |
30.5 cm x 24.4 cm) |
ATX Form Factor |
Garanti: 36 Ay |
