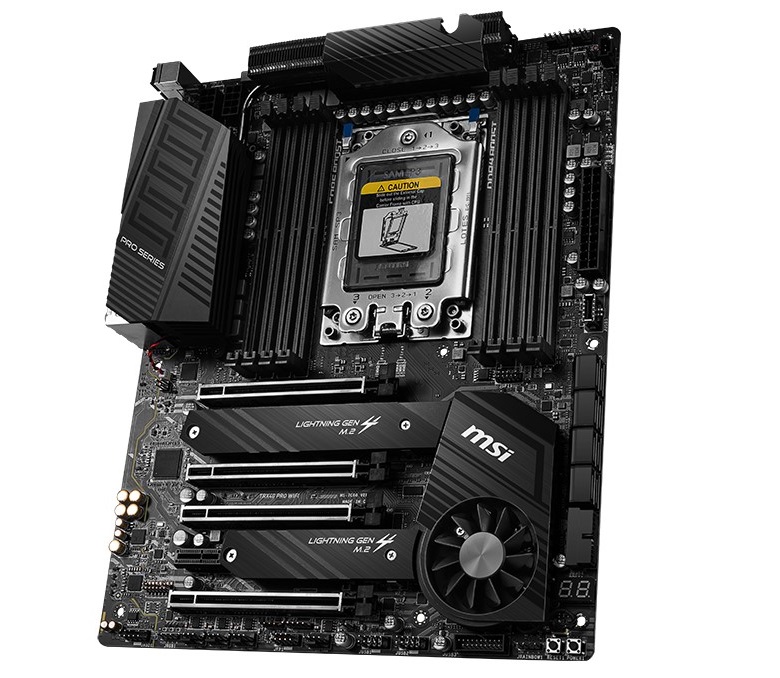

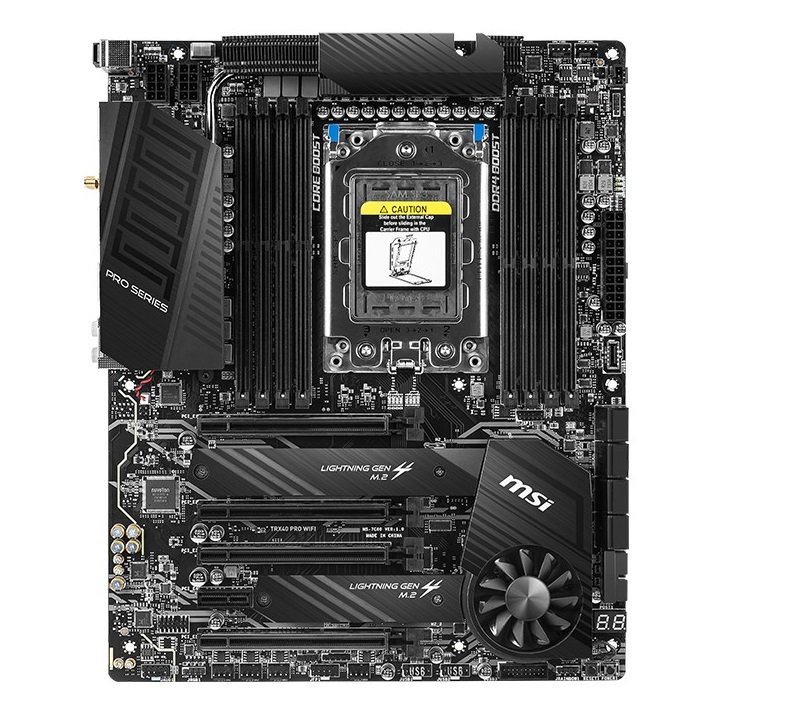

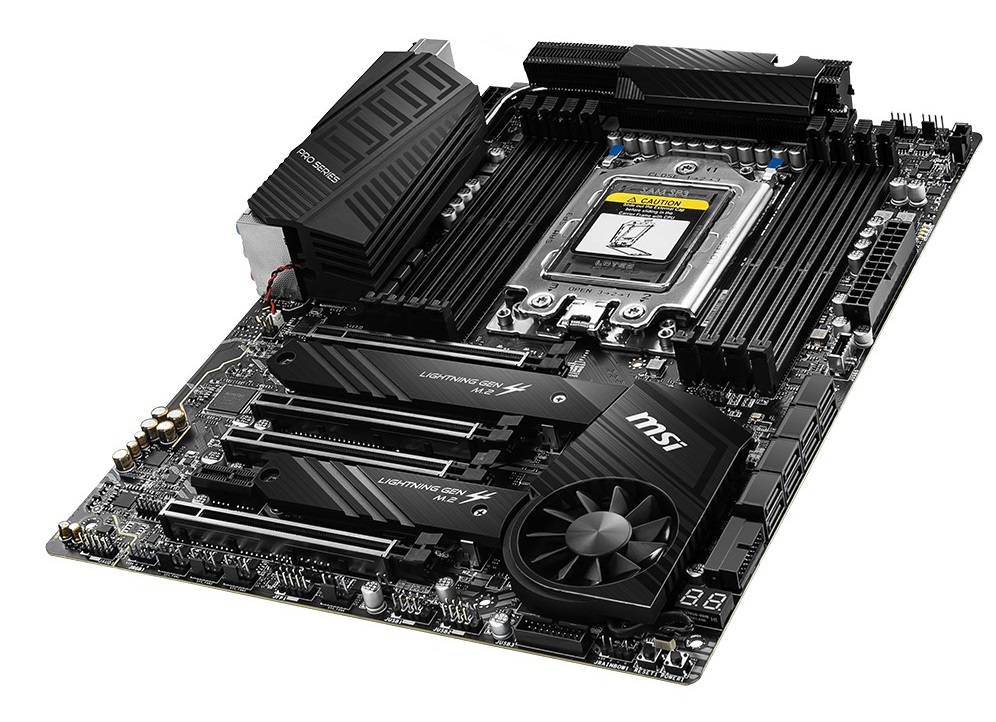

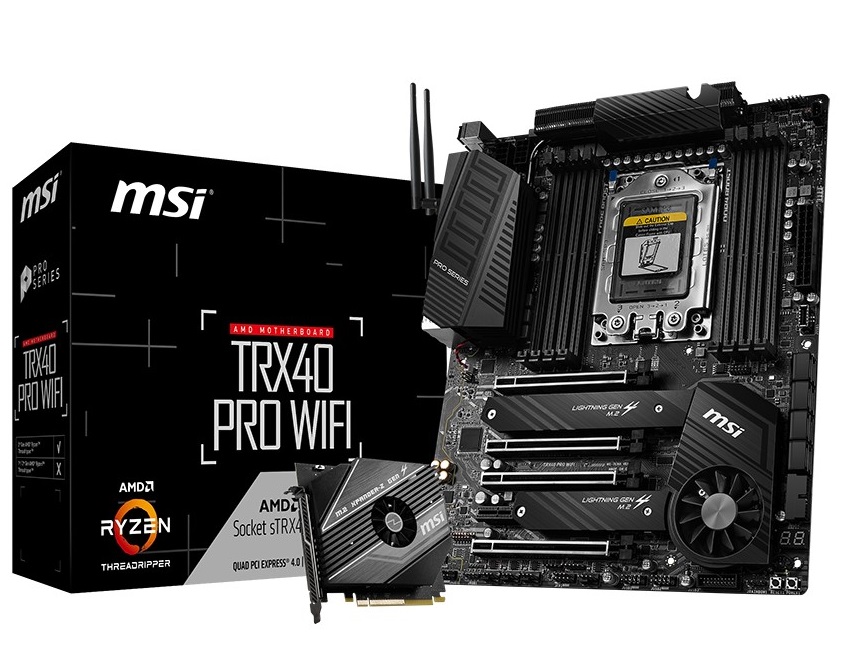

MSI TRX40 PRO WIFI
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: AMD TRX40 Chipset |
BELLEK ÖZELLİKLERİ: |
8 x DDR4 memory slots, support up to 256GB |
Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz |
1DPC 1R max speed 4666 MHz |
1DPC 2R max speed 4000 MHz |
2DPC 1R max speed 4000 MHz |
2DPC 2R max speed 3600 MHz |
-Quad channel memory architecture2 |
-Supports Intel Extreme Memory Profile (XMP) |
-Supports non-ECC UDIMM memory |
-Supports ECC UDIMM memory |
-Supports un-buffered memory |
GENİŞLETME SLOTLARI: |
4 x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode) |
1 x PCIe 3.0 x1 slot |
MULTI GPU: |
Supports 3-Way NVIDIA® SLI? Technology |
Supports 3-Way AMD® CrossFire? Technology |
DEPOLAMA: |
AMD TRX40 Chipset |
8 x SATA 6Gb/s ports |
AMD Processor |
2 x M.2 slots (Key M) |
M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices |
M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices |
RAID: |
AMD TRX40 Chipset |
Supports RAID 0, RAID 1 and RAID 10 |
SES: |
Realtek ALC1220 Codec |
7.1-Channel High Definition Audio |
Supports S/PDIF output |
LAN: |
2 x Intel® I211AT Gigabit LAN controller |
ARKA PANEL ÇIKIŞLARI: |
Clear CMOS Button |
Wireless / Bluetooth |
Gigabit LAN |
Gigabit LAN |
Audio Connectors |
Flash BIOS Button |
USB 3.2 Gen1 Type-A |
USB 3.2 Gen2 Type-A |
USB 3.2 Gen2x2 20G Type-C |
Optical S/PDIF out |
BOYUTLARI: |
30.4 cm x 24.4 cm |
ATX Form Factor |
Garanti: 36 Ay |
