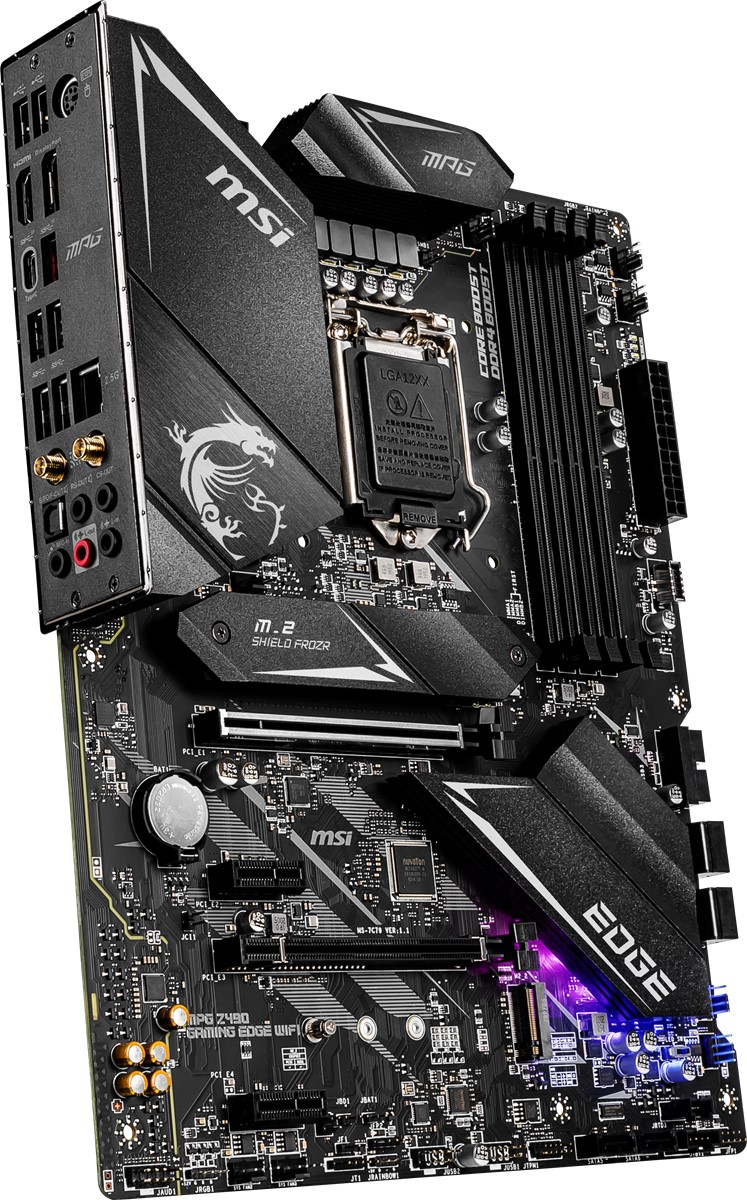

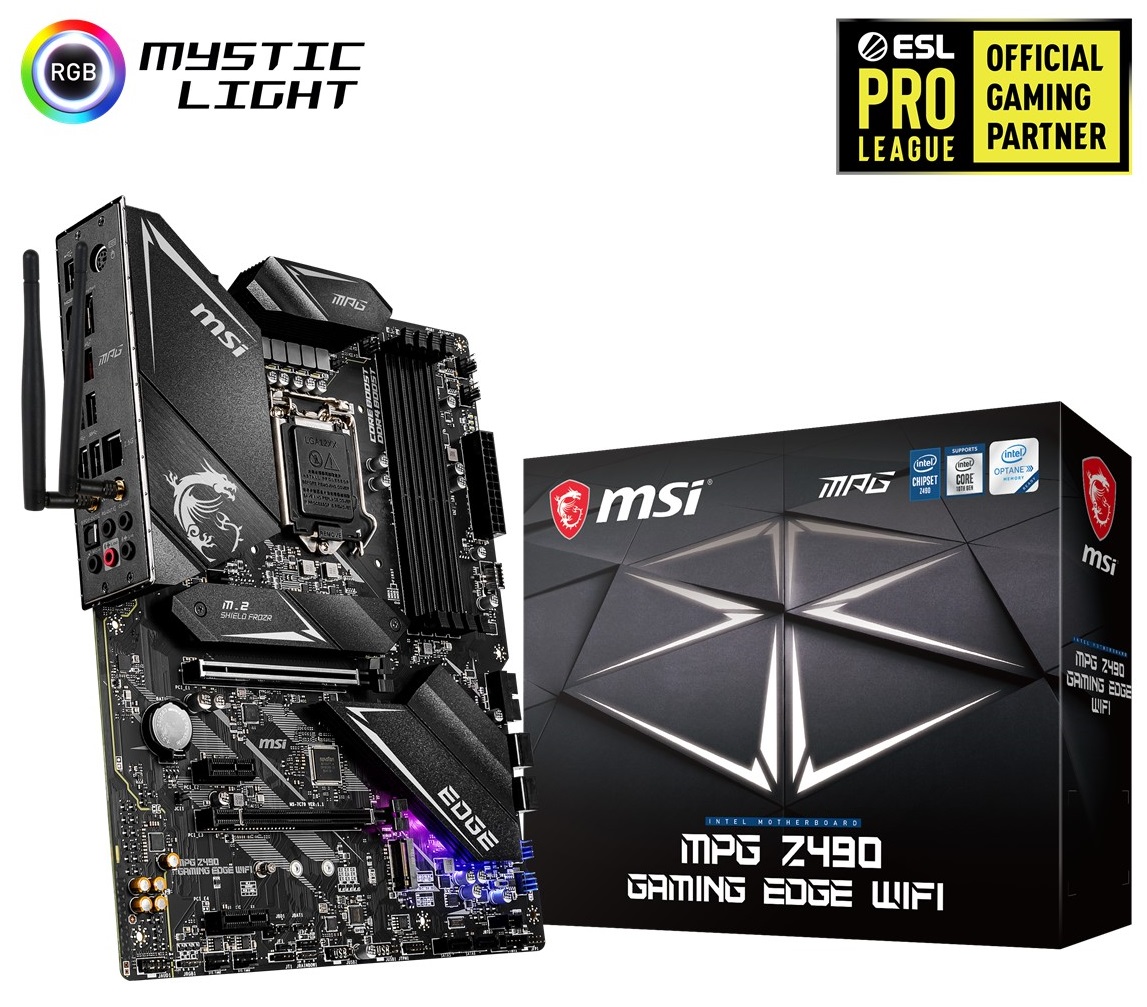

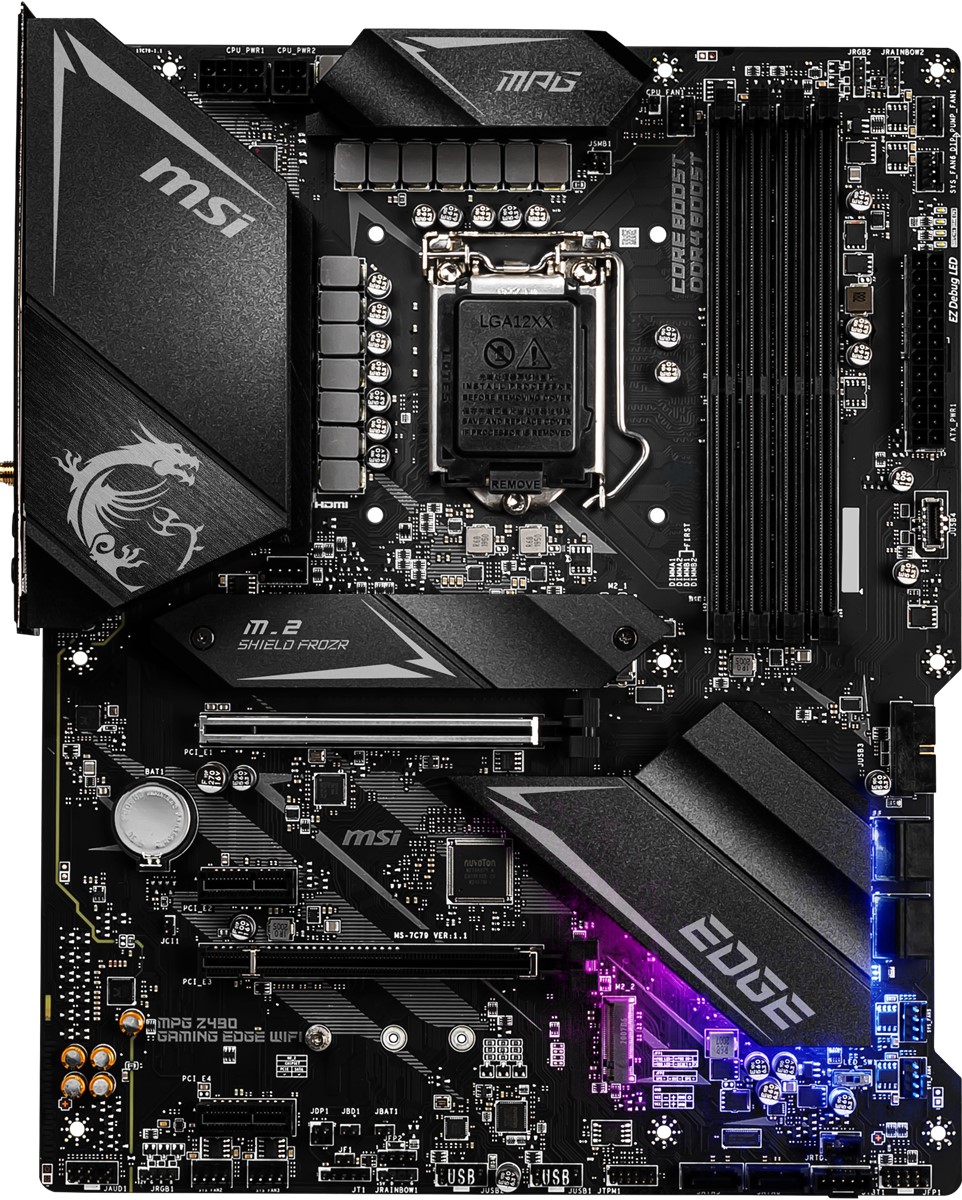

MSI MPG Z490 GAMING EDGE WIFI
Socket Türü: LGA 1200 | |||||||||
Vga Türü: PCIExp | |||||||||
Ram Türü: DDR4 | |||||||||
Çipset: INTEL Z490 | |||||||||
BELLEK: | |||||||||
4x DDR4 memory slots, support up to 128GB1 | |||||||||
Supports 1R 2133/2666/2933 MHz* | |||||||||
1DPC 1R Max speed up to 4800+ MHz | |||||||||
1DPC 2R Max speed up to 4266+ MHz | |||||||||
2DPC 1R Max speed up to 4400+ MHz | |||||||||
2DPC 2R Max speed up to 4000+ MHz | |||||||||
Supports Dual-Channel mode | |||||||||
Supports non-ECC, un-buffered memory | |||||||||
Supports Intel Extreme Memory Profile (XMP) | |||||||||
ÇOKLU EKRAN KARTI DESTEĞi: | |||||||||
Supports AMD 2-Way CrossFire? Technology | |||||||||
GENİŞLETME SLOTLARI: | |||||||||
1x PCIe 3.0 x16 slot (from CPU) | |||||||||
1x PCIe 3.0 x16 slot (x4 mode, from PCH) | |||||||||
2x PCIe x1 slots (from PCH) | |||||||||
DEPOLAMA: | |||||||||
Intel Z490 Chipset | |||||||||
6x SATA 6Gb/s ports 1 | |||||||||
2x M.2 slots (Key M) | |||||||||
Supports up to PCIe 3.0 x4 and SATA 6Gb/s | |||||||||
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices1 | |||||||||
M2_2 slot supports 2242/ 2260 /2280 storage devices2 | |||||||||
Intel® Optane? Memory Ready*** 3 | |||||||||
SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. | |||||||||
SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot. | |||||||||
Before using Intel® Optane? memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website. | |||||||||
LAN: | |||||||||
1x Realtek RTL8125B-CG 2.5G LAN Controller | |||||||||
WIFI: | |||||||||
Intel AX201 | |||||||||
Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps | |||||||||
WiFi 6 Pre-Certified | |||||||||
Supports Bluetooth® 5.1 , FIPS, FISMA | |||||||||
The Wireless module is pre-install in the M2 (Key-E) slot | |||||||||
Only support windows 10 64-bit | |||||||||
SES:
Realtek ALC1200-VD1 Codec |
7.1-Channel High Definition Audio |
Supports S/PDIF output |
|
BOYUTLAR: |
30.5 cm x 24.4 cm |
ATX Form Factor |
|
Garanti: 36 Ay MSI Yetkili Servisinde | |
