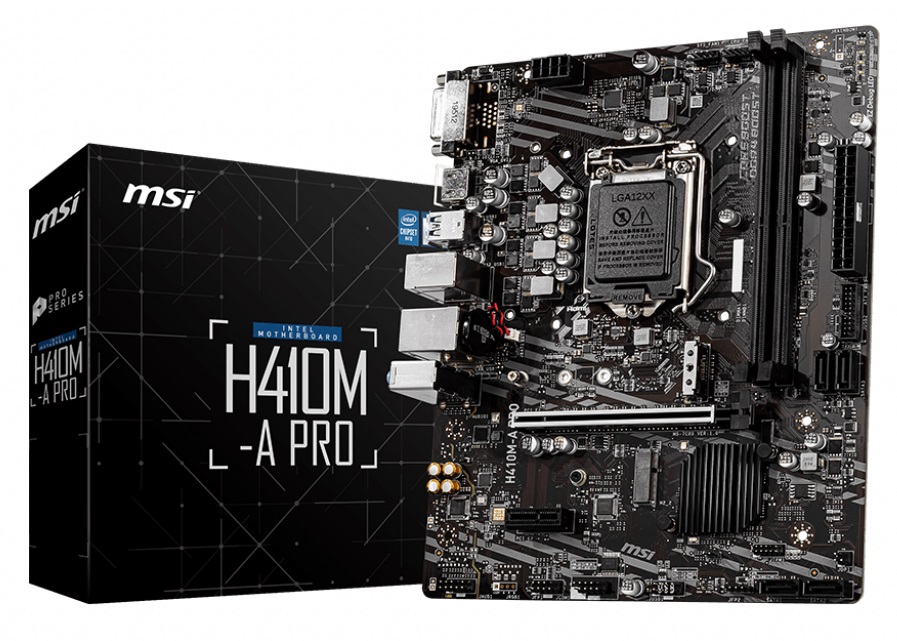

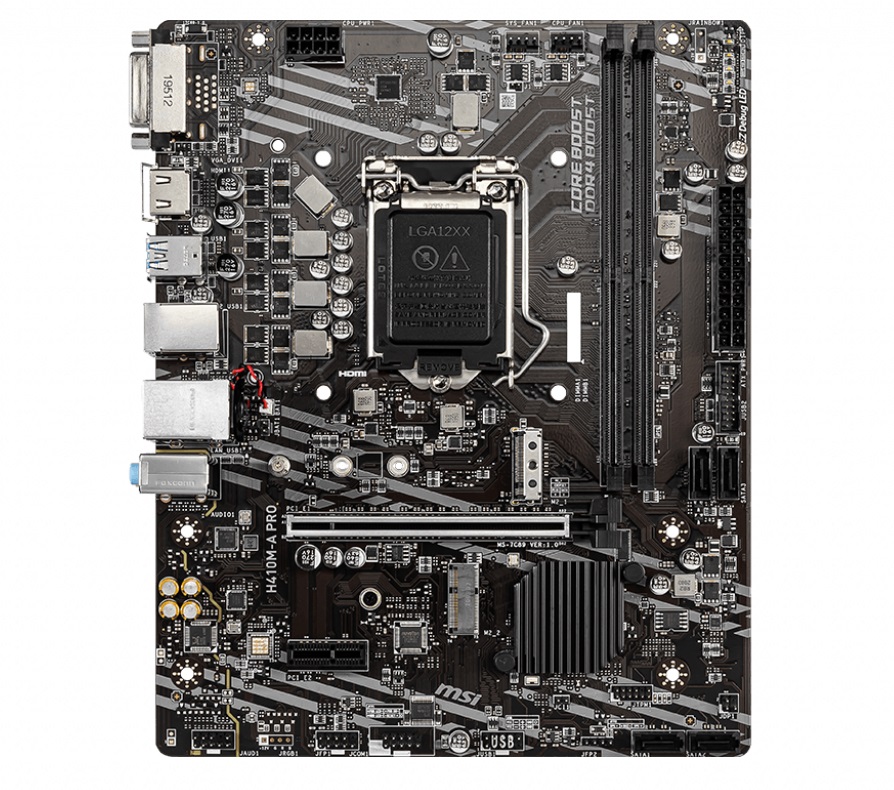

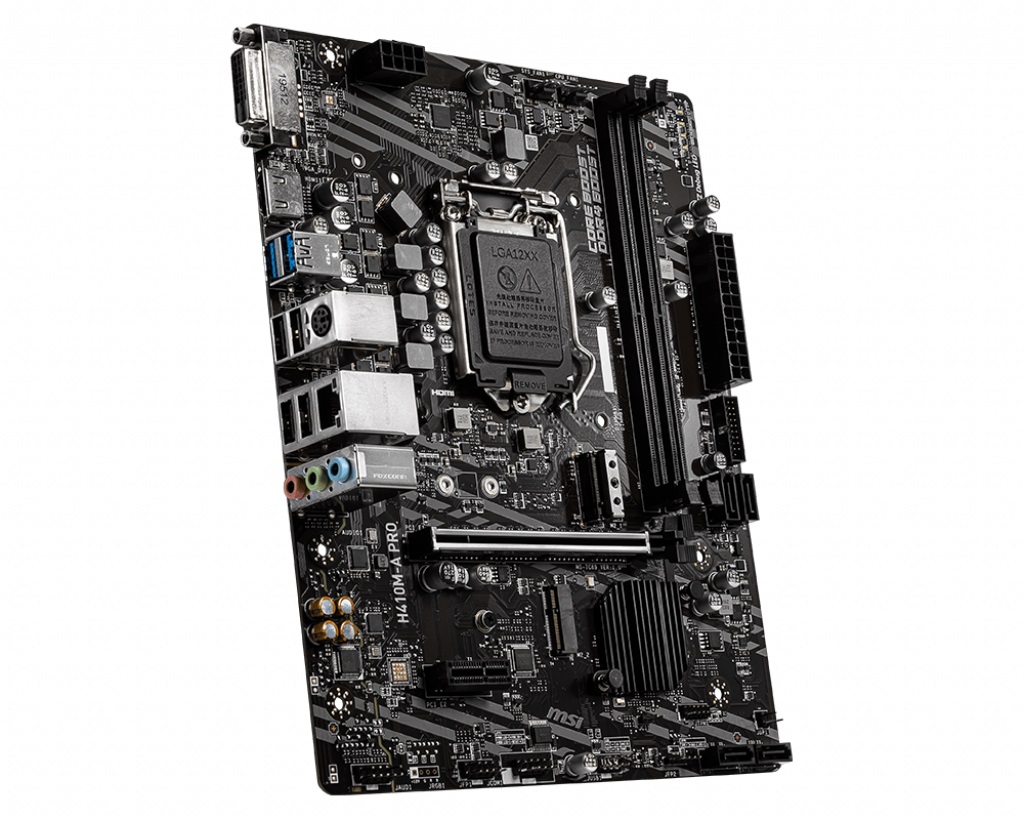

MSI H410M-A PRO
Socket Türü: LGA 1200 | |||||||||||||
Vga Türü: PCIExp | |||||||||||||
Ram Türü: DDR4 | |||||||||||||
Çipset: INTEL H410 | |||||||||||||
BELLEK: | |||||||||||||
2x DDR4 memory slots, support up to 64GB1 | |||||||||||||
Intel® Core? i7/ i9 | |||||||||||||
Supports up to DDR4 2933 MHz | |||||||||||||
Intel® Core? i5 and below | |||||||||||||
Supports up to DDR4 2666 MHz | |||||||||||||
Supports Dual-Channel mode | |||||||||||||
Supports non-ECC, un-buffered memory | |||||||||||||
Supports Intel® Extreme Memory Profile (XMP) | |||||||||||||
GRAFİK: | |||||||||||||
1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz | |||||||||||||
1x HDMI? 1.4 port, supports a maximum resolution of 4096x2160 @30Hz | |||||||||||||
Maximum shared memory is 1GB | |||||||||||||
GENİŞLETME SLOTLARI: | |||||||||||||
1x PCIe 3.0 x16 slot (From CPU) | |||||||||||||
1x PCIe 3.0 x1 slot (From PCH) | |||||||||||||
1x M.2 slot with E key for WiFi module only | |||||||||||||
DEPOLAMA: | |||||||||||||
Intel H410 Chipset | |||||||||||||
4x SATA 6Gb/s ports | |||||||||||||
1x M.2 slot (Key M) | |||||||||||||
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices | |||||||||||||
LAN: | |||||||||||||
1x Intel I219V Gigabit LAN controller | |||||||||||||
SES:
Realtek ALC892 Codec |
7.1-Channel High Definition Audio |
|
USB: |
Intel H410 Chipset |
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) |
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector |
|
BOYUTLAR: |
Mirco-ATX Form Factor |
9.3 in. x 7.5 in. (23.6 cm x 19.0 cm) |
|
Garanti: 36 Ay Asus Yetkili Servisinde | |
