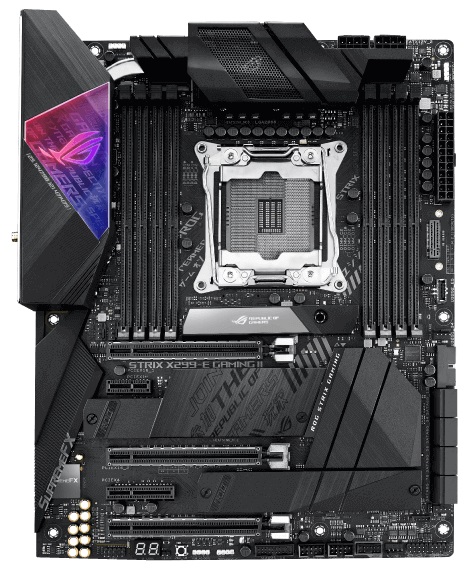

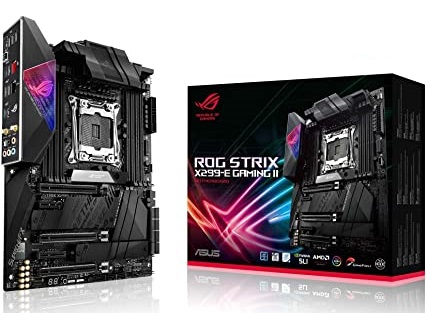

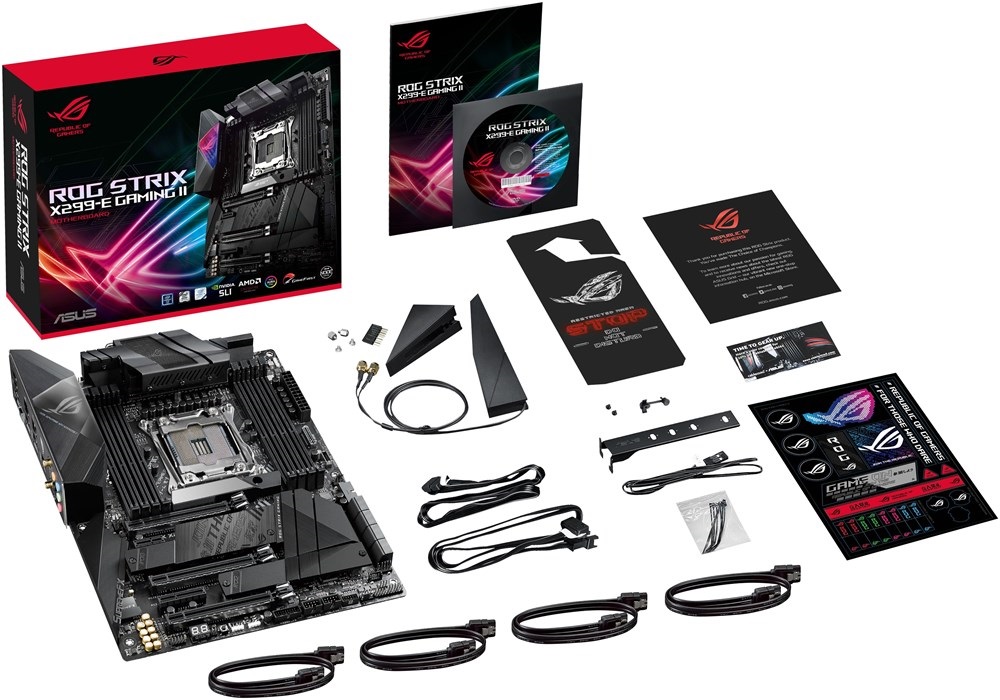

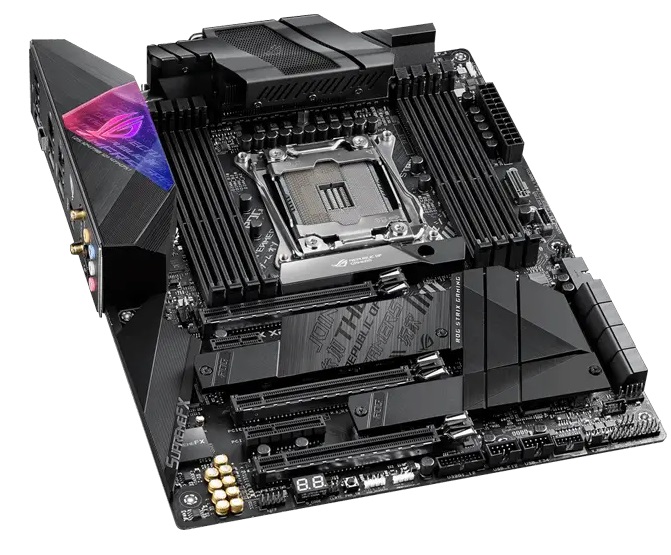

ASUS ROG STRIX X299-E GAMING II
Socket Türü: Socket 2066 |
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: Intel X299 |
RAM/BELLEK: |
(Intel® Core? i9 10000 X-Series CPU) |
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
(Intel® Core? i9 9000/7000 and i7 9000 X-Series CPU) |
8 x DIMM, Max. 256GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory |
Genişletme Slotları: |
48-Lane CPU- |
(Intel® Core? i9 10000 X-Series CPU) |
3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x8) |
44-Lane CPU- |
(Intel® Core? i9 9000/7000 and i7 9000 X-Series CPU) |
3 x PCIe 3.0 x16 (x16, x16/x16, x16/x16/x4) |
28-Lane CPU- |
(Intel® Core? i7 7000 X-Series CPU) |
3 x PCIe 3.0 x16 ( x16, x16/x8, x16/x8/x4) |
Intel® X299 Chipset |
1 x PCIe 3.0 x4 |
1 x PCIe 3.0 x1 *1 |
Multi GPU DESTEĞİ: |
Supports NVIDIA® 3-Way SLI® Technology |
Supports NVIDIA® 2-Way SLI® Technology |
Supports AMD 3-Way CrossFireX? Technology |
Supports AMD 2-Way CrossFireX Technology |
Depolama |
Intel® Core? X-Series Processors Family : |
2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2 |
Intel® Virtual RAID on CPU(VROC) |
Intel® X299 Chipset : |
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (both SATA & PCIE mode), |
8 x SATA 6Gb/s port(s), |
Support Raid 0, 1, 5, 10 |
Intel® Rapid Storage Technology supports |
Intel® Optane? Memory Ready *3 |
SES: |
SupremeFX 8-Channel High Definition Audio CODEC S1220A |
- Dual Headphone Amplifiers |
- Impedance sense for front and rear headphone outputs |
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking |
- High quality 120 dB SNR stereo playback output and 113 dB SNR stereo playback input |
- SupremeFX Shielding Technology |
- Supports up to 32-Bit/192kHz playback *4 |
Audio Feature : |
- SupremeFX Shielding? Technology |
- DTS® Sound Unbound |
- Optical S/PDIF out port(s) at back panel |
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals |
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
- Sonic Radar III |
- Sonic Studio III + Sonic Studio Virtual Mixer |
LAN |
Intel® I219V |
Realtek® RTL8125-CG 2.5G LAN |
Anti-surge LANGuard |
ROG GameFirst Technology |
Back Panel I/O Ports |
1 x LAN (RJ45) port(s) |
4 x USB 2.0 (one port can be switched to USB BIOS FlashBack?) |
1 x Optical S/PDIF out |
5 x Audio jack(s) |
1 x Anti-surge 2.5G LAN (RJ45) port |
1 x Wi-Fi antenna port(s) |
1 x USB BIOS FlashBack? Button(s) |
2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A |
4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) |
Anakart Boyutları |
ATX Form Factor |
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
Garanti: 36 Ay |
