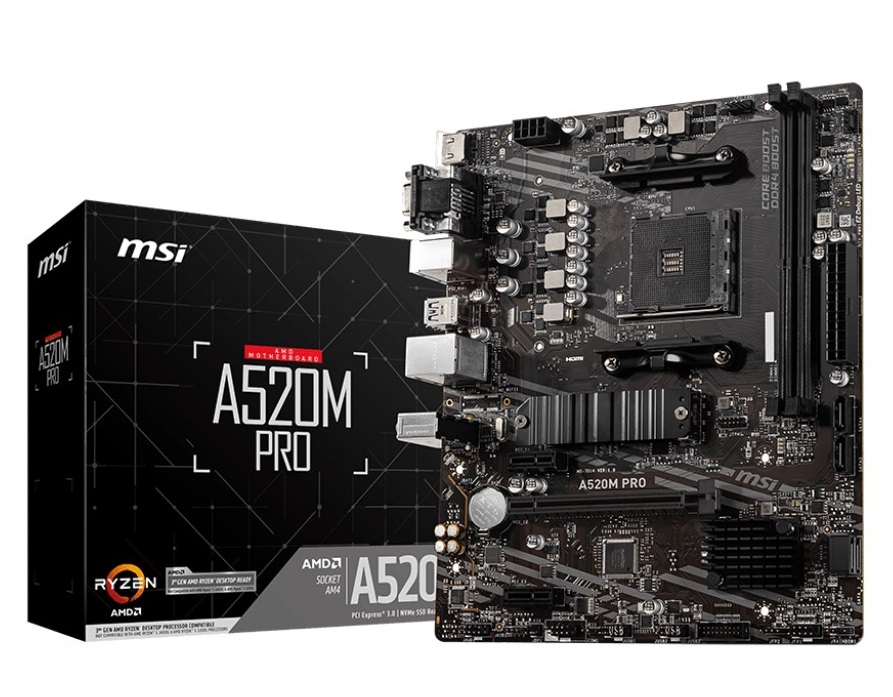

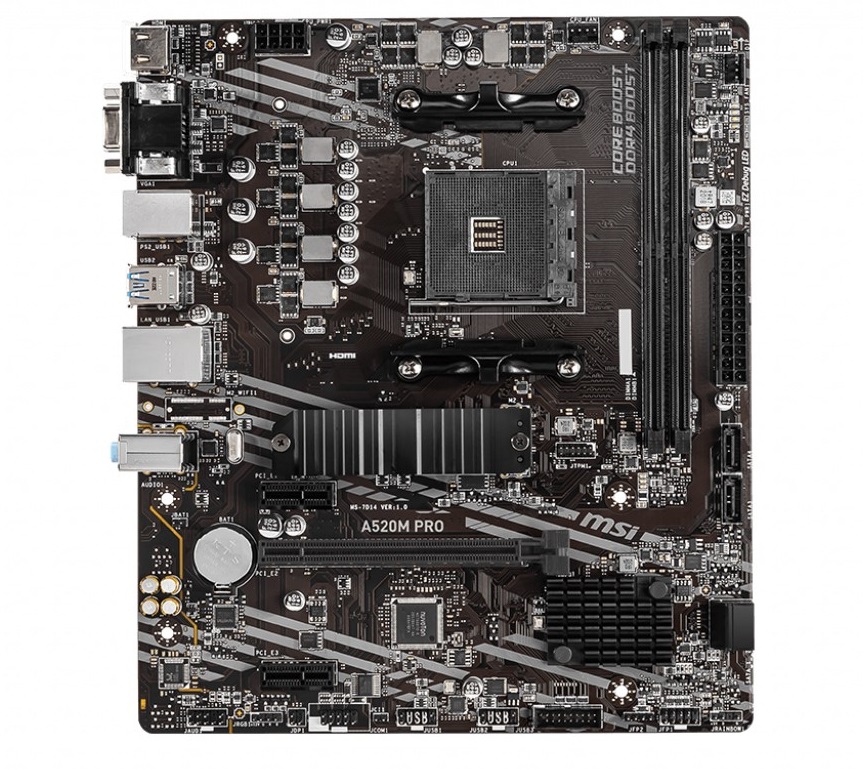

Marka: Msi |
Model: A520M PRO |
Socket Türü: Socket AM4 |
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: AMD 520 |
BELLEK ÖZELLİKLERİ: |
2x DDR4 memory slots, support up to 64GB 1 |
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ |
3200 MHz by JEDEC |
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ |
3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE |
1DPC 1R max speed 4600 MHz |
1DPC 2R max speed 3866 MHz |
Dual channel memory architecture |
Supports non-ECC UDIMM memory |
Supports ECC UDIMM memory (non-ECC mode) |
Supports un-buffered memory |
GENİŞLETME SLOTLARI: |
1x PCIe x16 slot (PCI_E2) 1 |
2x PCIe 3.0 x1 slots |
ONBOARD GRAFİK: |
1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz2 |
1x HDMI2.1, supports a maximum resolution of 4096x2160@60Hz1 2 |
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1 |
Maximum shared memory of 16GB |
MULTI GPU: |
- Yok |
DEPOLAMA: |
AMD A520 Chipset |
4x SATA 6Gb/s ports |
1x M.2 slot (Key M) (from AMD Processor) |
M2_1 slot (from AMD Processor) |
Supports PCIe 3.0 x4 1 |
Supports SATA 6Gb/s |
Supports 2242/ 2260/ 2280 storage devices |
SES: |
Realtek® ALC892/ALC897 Codec |
7.1-Channel High Definition Audio |
LAN: |
1x Realtek® RTL8111H LAN controller |
ARKA PANEL ÇIKIŞLARI: |
VGA |
Keyboard / Mouse |
LAN port |
HDMI |
DisplayPort |
USB 2.0 Ports |
USB 3.2 Gen 1 5Gbps Type-A |
USB 3.2 Gen 1 5Gbps Type-A |
Audio Connectors |
Form Factor: |
M-ATX Form Factor |
9.6 in. x 8.3 in. (24.4 cm x 21 cm) |
Garanti: 36 Ay |
