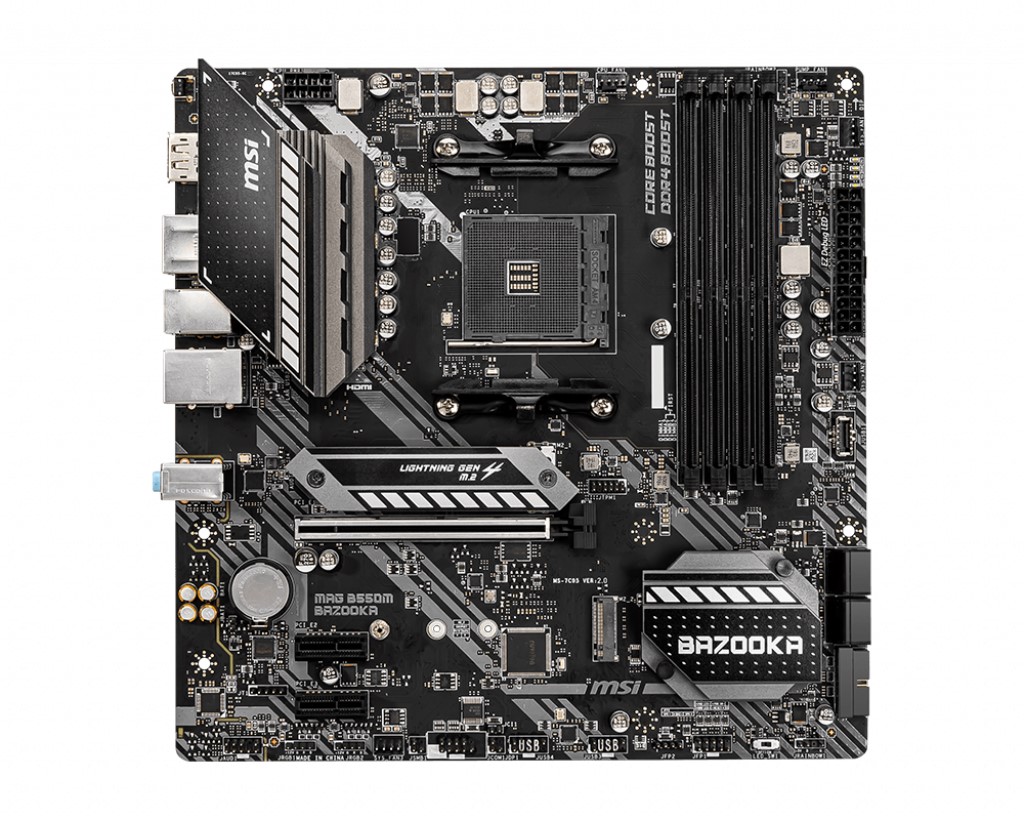

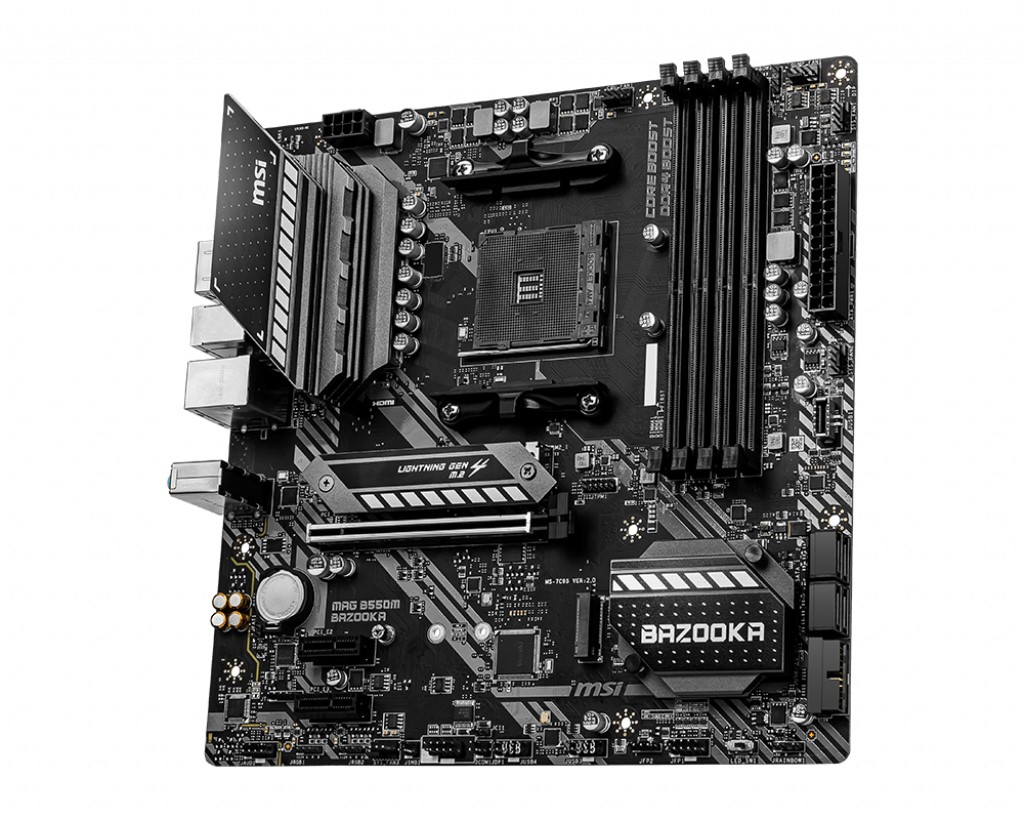

MSI MAG B550M BAZOOKA
Socket Türü: Socket AM4 |
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: AMD B550 |
İŞLEMCİ DESTEĞİ: |
sADECE AM4 Soket 3.Nesil AMD Ryzen İşlemciler |
BELLEK ÖZELLİKLERİ: |
4x DDR4 memory slots, support up to 128GB 1 |
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC |
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE |
1DPC 1R max speed 4400 MHZ |
1DPC 2R max speed 3733 MHZ |
2DPC 1R max speed 3866 MHZ |
2DPC 2R max speed 3466 MHZ |
Dual channel memory architecture |
Supports non-ECC UDIMM memory |
Supports ECC UDIMM memory (non-ECC mode) |
Supports un-buffered memory |
GENİŞLETME SLOTLARI: |
1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1 |
2x PCIe 3.0 x1 slots |
The supported specification depends on installed processor. |
MULTI GPU: - |
DEPOLAMA: |
AMD B550 Chipset |
4x SATA 6Gb/s ports |
2x M.2 slots (Key M) |
M2_1 slot (from AMD processor) |
Supports PCIe 4.0/ 3.0 x4 1 |
Supports SATA 6Gb/s |
Supports 2242/ 2260/ 2280 storage devices |
M2_2 slot (from AMD B550 chipset) |
Supports PCIe 3.0x4 |
Supports 2242/ 2260/ 2280 storage devices |
RAID: |
AMD B550 Chipset |
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
SES: |
Realtek ALC892/ALC897 Codec |
7.1-Channel High Definition Audio |
LAN: |
1x Realtek RTL8111HN 1Gbps LAN controller |
BOYUTLAR: |
Micro-ATX Form Factor |
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
Garanti: 36 Ay |
