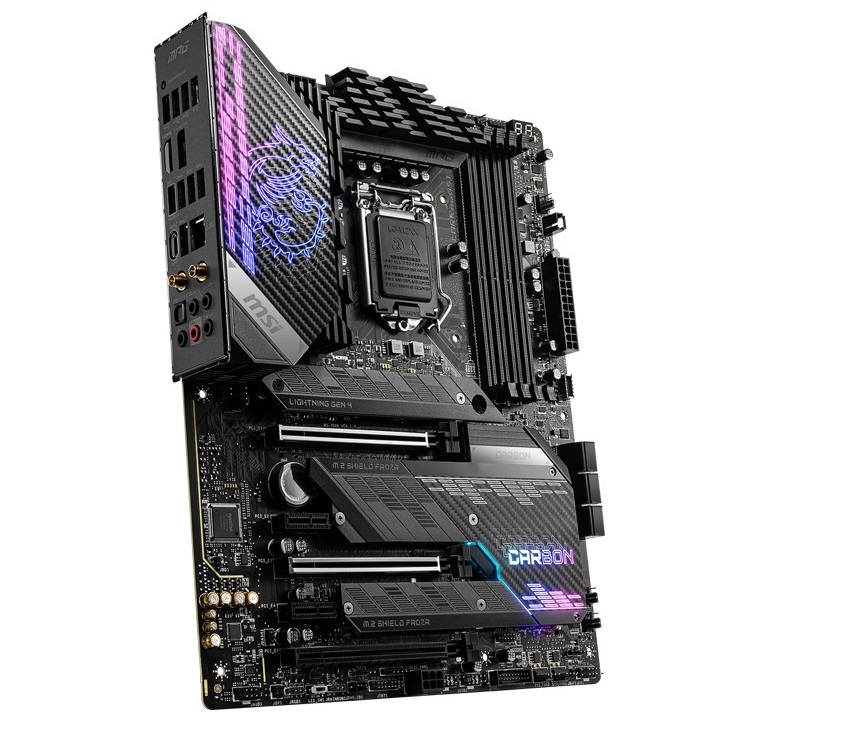

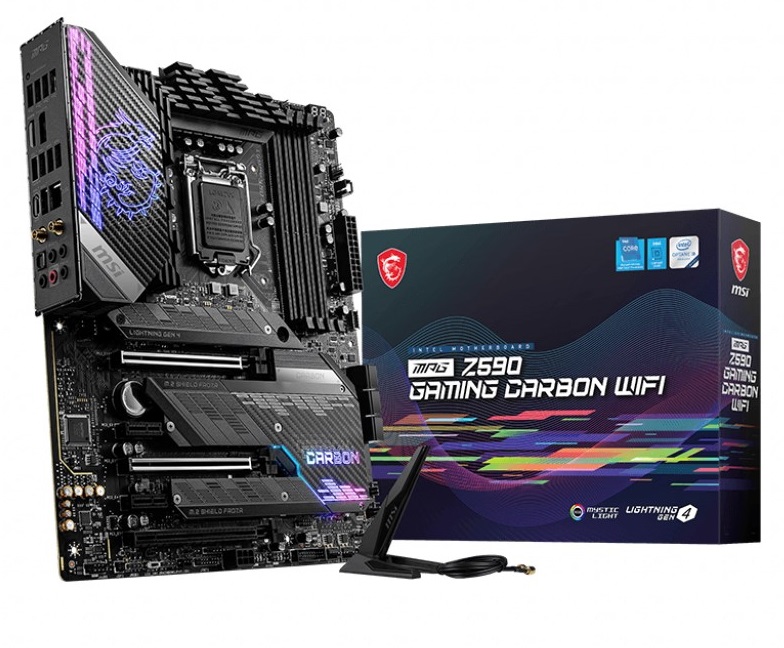

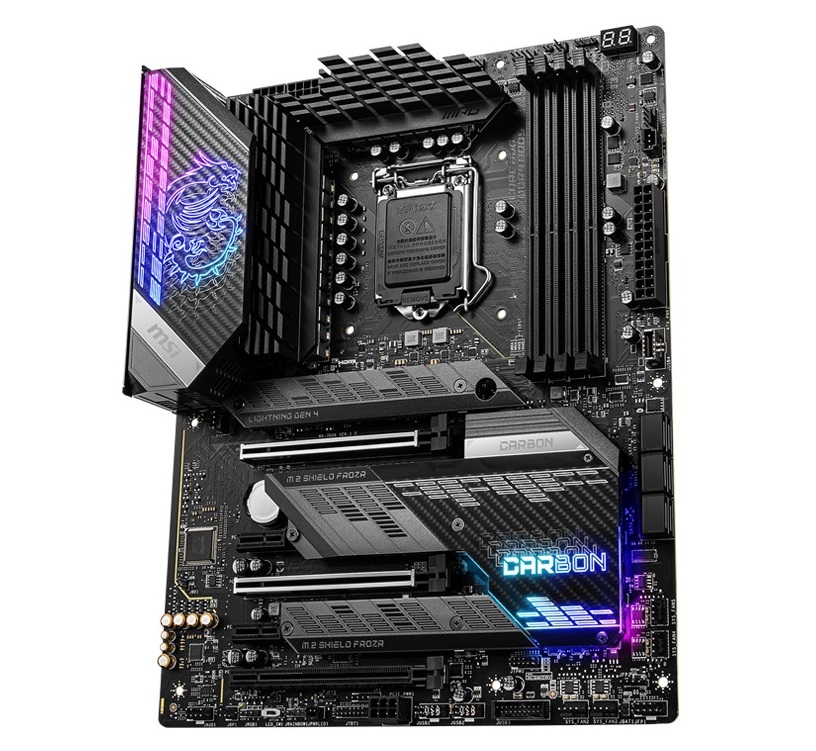

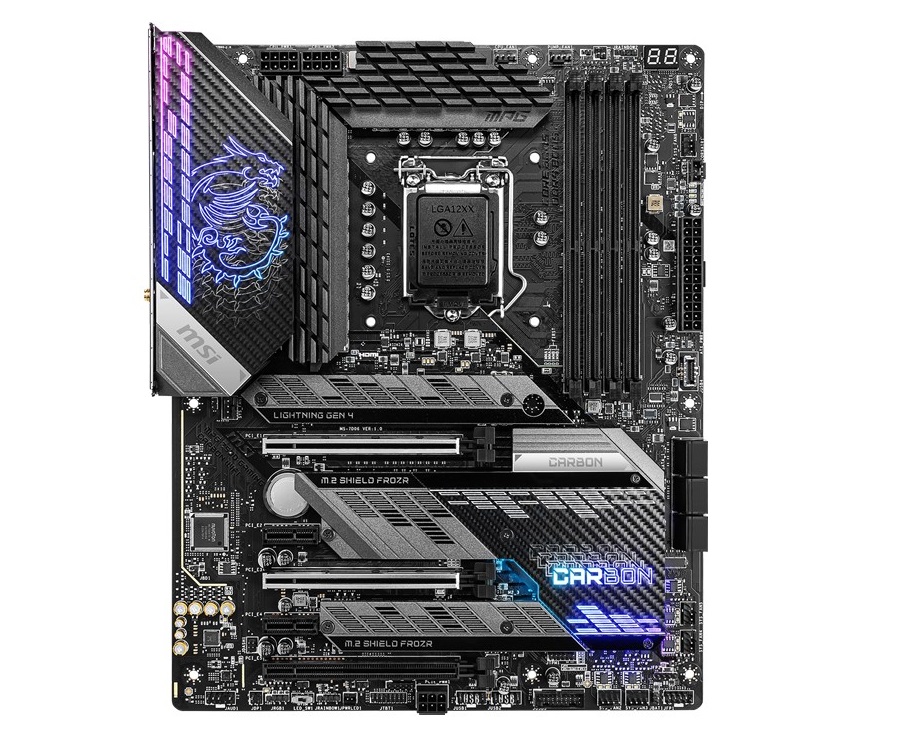

MSI MPG Z590 GAMING CARBON
Socket Türü: LGA 1200 | ||||||||
Vga Türü: PCIExp | ||||||||
Ram Türü: DDR4 | ||||||||
Çipset: INTEL Z590 | ||||||||
BELLEK: | ||||||||
4x DDR4 memory slots, support up to 128GB1 | ||||||||
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) | ||||||||
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) | ||||||||
Max overclocking frequency: | ||||||||
1DPC 1R Max speed up to 5333 MHz | ||||||||
1DPC 2R Max speed up to 4700+ MHz | ||||||||
2DPC 1R Max speed up to 4400+ MHz | ||||||||
2DPC 2R Max speed up to 4000+ MHz | ||||||||
Supports Dual-Channel mode | ||||||||
Supports non-ECC, un-buffered memory | ||||||||
Supports Intel® Extreme Memory Profile (XMP) | ||||||||
ÇOKLU EKRAN KARTI DESTEĞi: | ||||||||
Supports 3-Way AMD® CrossFire? Technology | ||||||||
GENİŞLETME SLOTLARI: | ||||||||
3x PCIe x16 slots | ||||||||
Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 | ||||||||
PCI_E1 & PCI_E3 slots (From CPU) | ||||||||
Support PCIe 4.0 for 11th Gen Intel® CPU | ||||||||
Support PCIe 3.0 for 10th Gen Intel® CPU | ||||||||
PCI_E5 slot (From Z590 Chipset) | ||||||||
Supports PCIe 3.0 | ||||||||
2x PCIe 3.0 x1 slots (From Z590 Chipset) | ||||||||
DEPOLAMA: | ||||||||
6x SATA 6Gb/s ports (From Z590 Chipset) | ||||||||
3x M.2 slots (Key M) | ||||||||
M2_1 slot (From CPU) | ||||||||
Available only on 11th Gen Intel® CPU | ||||||||
Supports PCIe 4.0 x4 | ||||||||
Supports 2242/ 2260/ 2280/ 22110 storage devices | ||||||||
M2_21 & M2_32 slot (From Z590 Chipset) | ||||||||
Supports PCIe 3.0 x4 | ||||||||
Supports SATA 6Gb/s | ||||||||
Supports 2242/ 2260/ 2280 storage devices | ||||||||
Intel® Optane? Memory Ready3 | ||||||||
Supports Intel® Smart Response Technology for Intel® Core? processors | ||||||||
LAN: | ||||||||
1x Intel® I225V 2.5Gbps LAN controller | ||||||||
WIFI: | ||||||||
Intel® Wi-Fi 6E AX210 | ||||||||
The Wireless module is pre-installed in the M.2 (Key-E slot | ||||||||
Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz 1(160MHz) up to 2.4Gbps | ||||||||
Supports 802.11 a/ b/ g/ n/ ac/ ax | ||||||||
Supports Bluetooth 5.22, FIPS, FISMA | ||||||||
SES:
Realtek ALC4080 Codec |
7.1-Channel High Definition Audio |
|
BOYUTLAR: |
ATX Form Factor |
12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
|
Garanti: 36 Ay MSI Yetkili Servisinde | |
