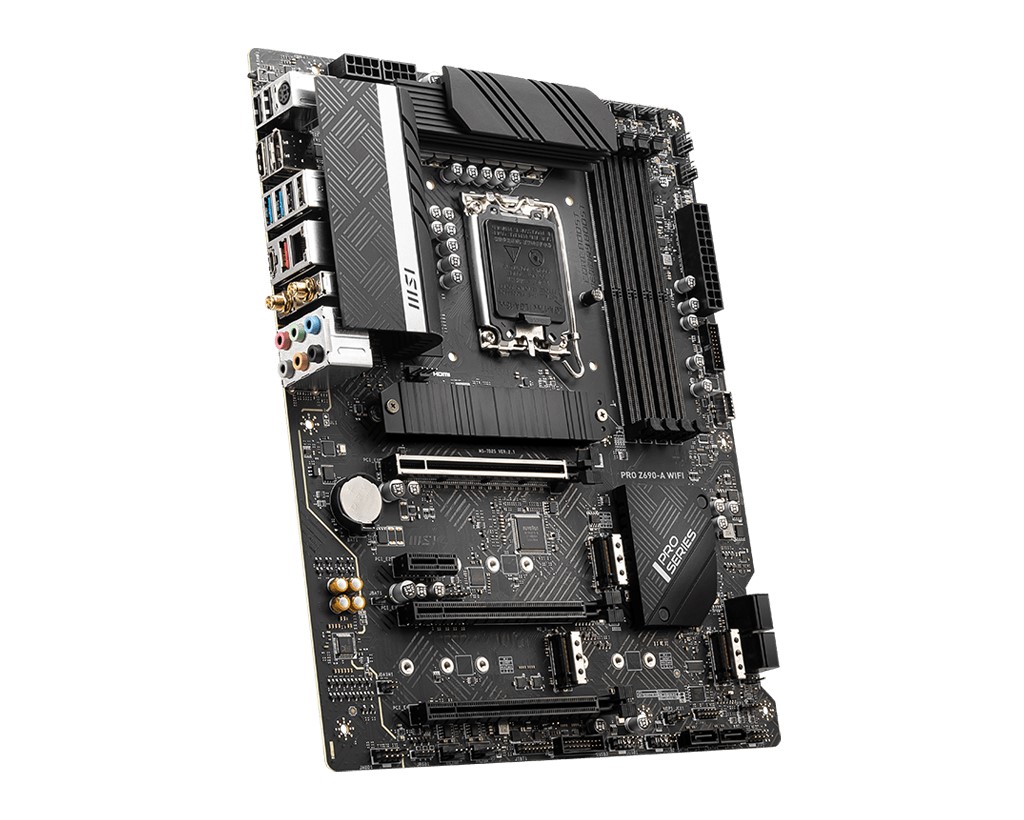

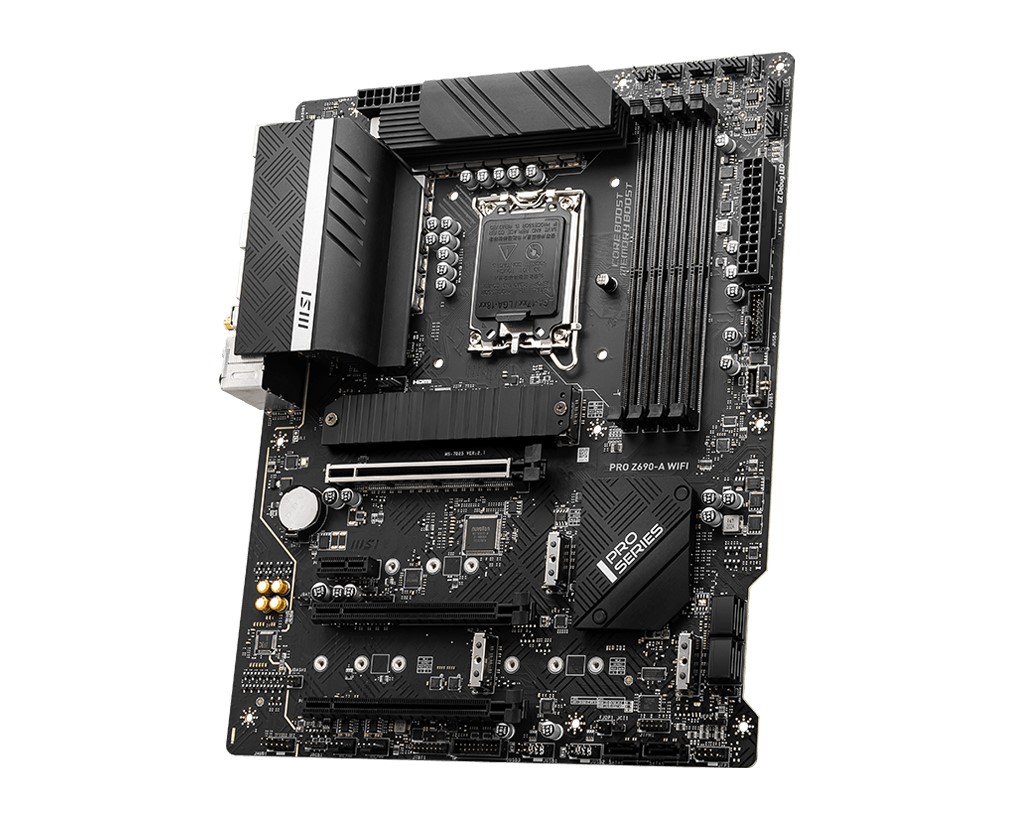

MSI PRO Z690-A WIFI DDR4 ram destekli
Socket Türü: LGA 1700 | |||||||||||||||||||||||||||
Vga Türü: PCIExp | |||||||||||||||||||||||||||
Ram Türü: DDR4 | |||||||||||||||||||||||||||
Çipset: INTEL Z690 | |||||||||||||||||||||||||||
BELLEK: | |||||||||||||||||||||||||||
4x DDR4 memory slots, support up to 128GB 1 | |||||||||||||||||||||||||||
Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) | |||||||||||||||||||||||||||
Max overclocking frequency: | |||||||||||||||||||||||||||
1DPC 1R Max speed up to 5200+ MHz | |||||||||||||||||||||||||||
1DPC 2R Max speed up to 4800+ MHz | |||||||||||||||||||||||||||
2DPC 1R Max speed up to 4400+ MHz | |||||||||||||||||||||||||||
2DPC 2R Max speed up to 4000+ MHz | |||||||||||||||||||||||||||
GENİŞLETME SLOTLARI: | |||||||||||||||||||||||||||
3x PCIe x16 slots | |||||||||||||||||||||||||||
PCI_E1 (from CPU) | |||||||||||||||||||||||||||
Supports up to PCIe 5.0 x16 | |||||||||||||||||||||||||||
PCI_E3 & PCI_E4 (from Z690 chipset) | |||||||||||||||||||||||||||
Supports up to PCIe 3.0 x4 & 3.0 x1 | |||||||||||||||||||||||||||
1x PCIe 3.0 x1 slot (from Z690 chipset) | |||||||||||||||||||||||||||
DEPOLAMA: | |||||||||||||||||||||||||||
6x SATA 6Gb/s ports (from Z690 chipset) | |||||||||||||||||||||||||||
4x M.2 slots (Key M) | |||||||||||||||||||||||||||
ETHERNET: 1x Intel® I225-V 2.5Gbps LAN | |||||||||||||||||||||||||||
WIRELESS:
Intel Wi-Fi 6 |
The Wireless module is pre-installed in the M.2 (Key-E) slot |
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps |
Supports 802.11 a/ b/ g/ n/ ac/ ax |
Supports Bluetooth® 5.2 |
|
|
|
SES: |
Realtek ALC897 Codec |
7.1-Channel High Definition Audio |
|
USB: |
Intel Z690 Chipset |
1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel |
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) |
6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors) |
4x USB 2.0 Type-A ports on the back panel |
USB Hub GL850G |
4x USB 2.0 ports are available through the internal USB connectors |
|
BOYUTLAR: |
30.5 cm x 24.4 cm |
|
Operating System: Windows® 11 64-bit, Windows® 10 64-bit |
|
Garanti: 36 Ay MSI Yetkili Servisinde | |
