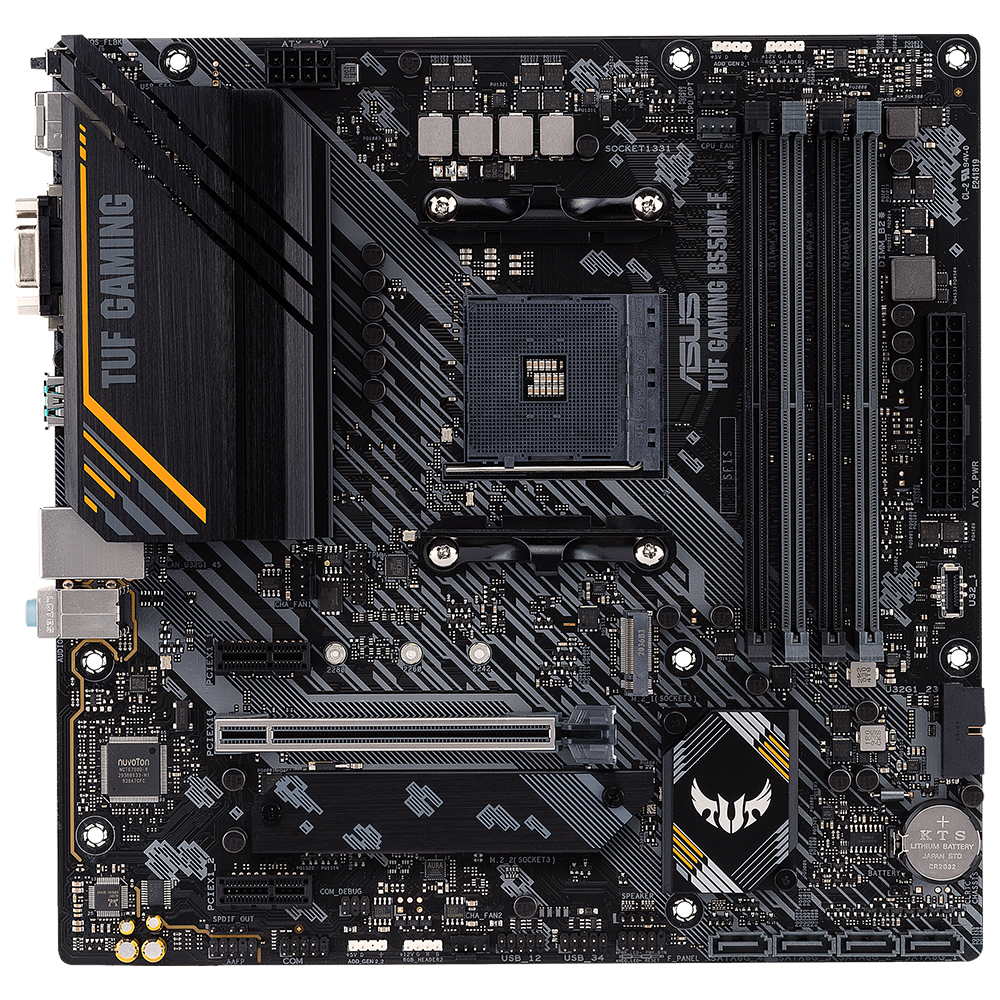

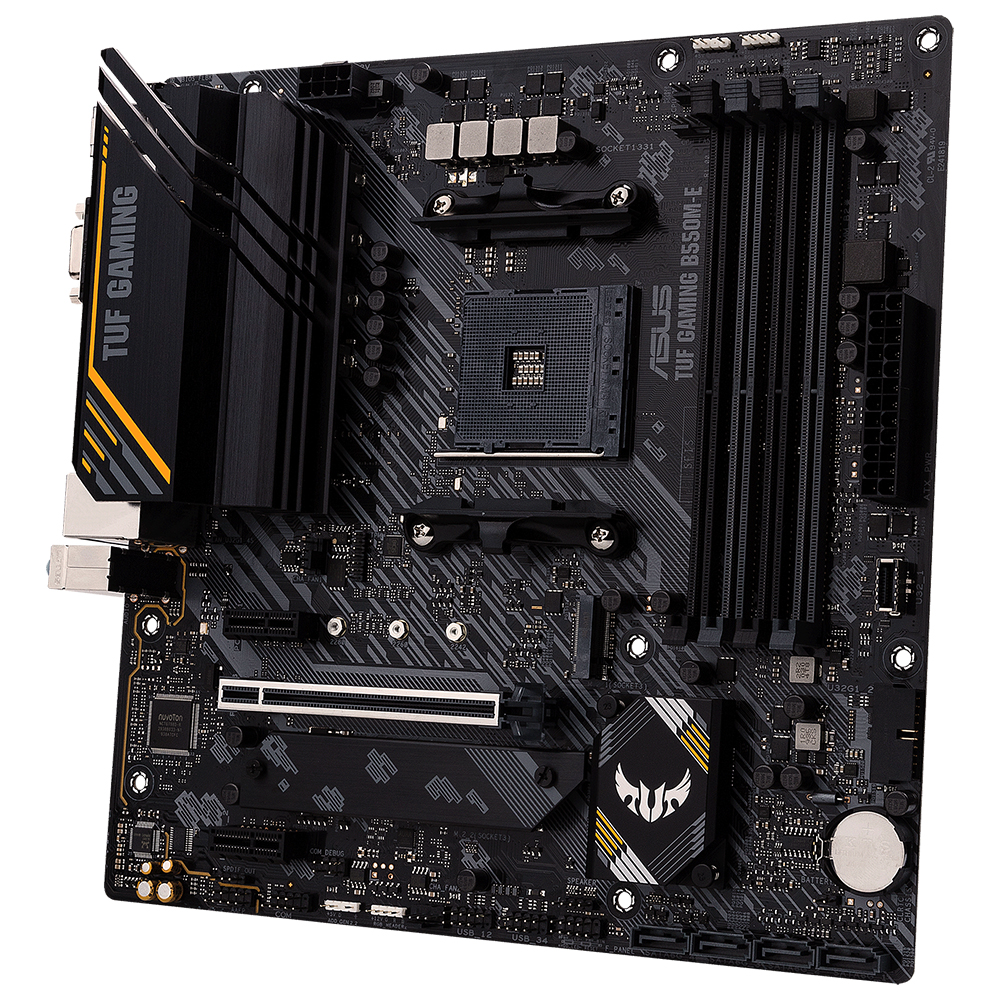

ASUS TUF GAMING B550M-E AM4 Soket Anakart
Model: TUF GAMING B550M-E |
Socket Türü: Socket AM4 |
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: AMD B550 |
BELLEK ÖZELLİKLERİ: |
Bellek Kanalı:4DDR4 (Çift Kanal) |
Maks. Bellek Boyutu:128GB |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
4 x DIMM, Max. 128GB, DDR4 4600(OC)/4400(OC)/4266(OC)/4133(OC)/ |
4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/ |
3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory* |
AMD Ryzen 4000 G-Series Desktop Processors |
4 x DIMM, Max. 128GB, DDR4 4800(OC)/4600(OC)/4466(OC)/4400(OC)/ |
4333(OC)/4266(OC)/4200(OC)/4133(OC)/4100(OC)/4000(OC)/3866(OC)/ |
3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/ |
2666/2400/2133 MHz, Un-buffered Memory* |
GENİŞLETME SLOTLARI: |
1 x PCIe 4.0 x16 (x16 modu) |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
1 x PCIe 4.0 x16 slot (supports x16 mode) |
AMD Ryzen? 5000 G-Series/ 4000 G-Series Desktop Processors |
1 x PCIe 3.0 x16 slot (supports x16 mode) |
AMD B550 Chipset |
2 x PCIe 3.0 x1 slots |
DEPOLAMA: |
2 x M.2 yuvası ve 4 x SATA 6Gb/s bağlantı noktasını destekler |
AMD Ryzen 5000 Series/ 3000 Series Desktop Processors |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
AMD Ryzen 4000 G-Series Desktop Processors |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
AMD B550 Chipset |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
4 x SATA 6Gb/s ports |
Support RAID 0, 1, 10 |
SES: |
ALC887/897 |
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking |
- Supports up to 24-Bit/192 kHz playback |
LAN: |
1 x Realtek 1Gb Ethernet |
TUF LANGuard |
USB: |
Arka USB:Toplam 6 bağlantı noktası |
2 x USB 3.2 Gen 2 ports (2 x Type-A) |
2 x USB 3.2 Gen 1 ports (2 x Type-A) |
2 x USB 2.0 ports (2 x Type-A) |
Ön Panel USB:Toplam 7 port |
1 x USB 3.2 Gen 1 connector (supports USB Type C®) |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Form Faktörü |
microATX |
24.4cm x 24.4cm |
Garanti: 36 Ay |
