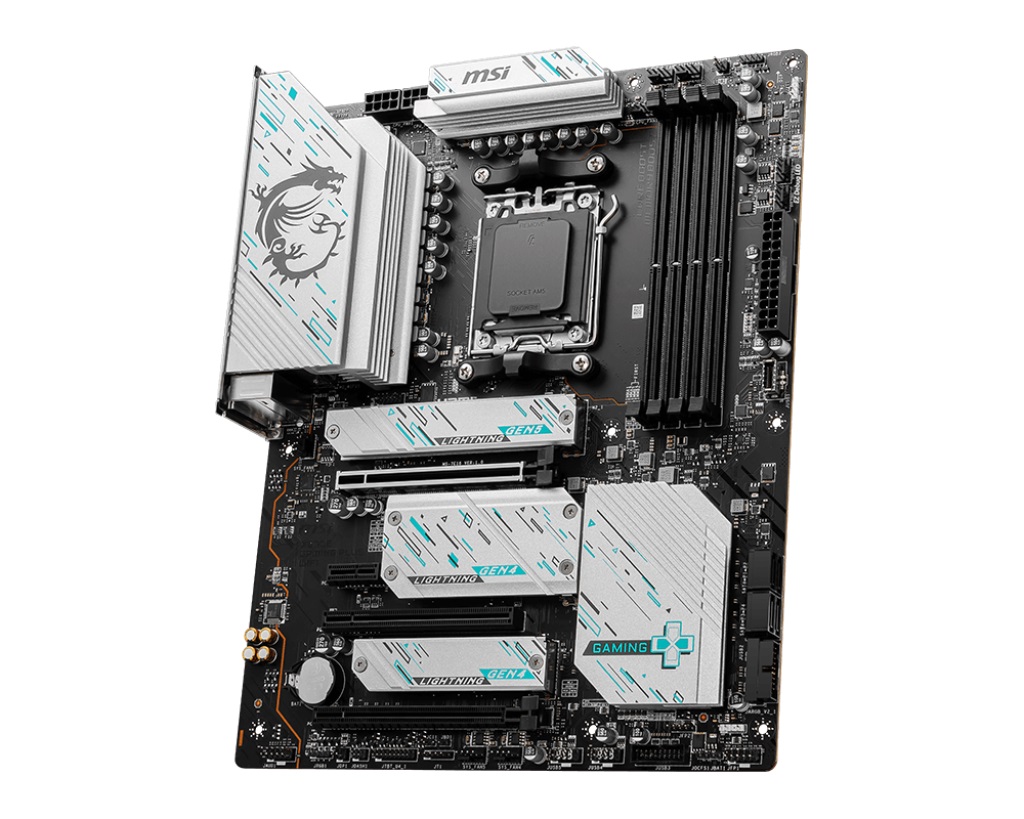

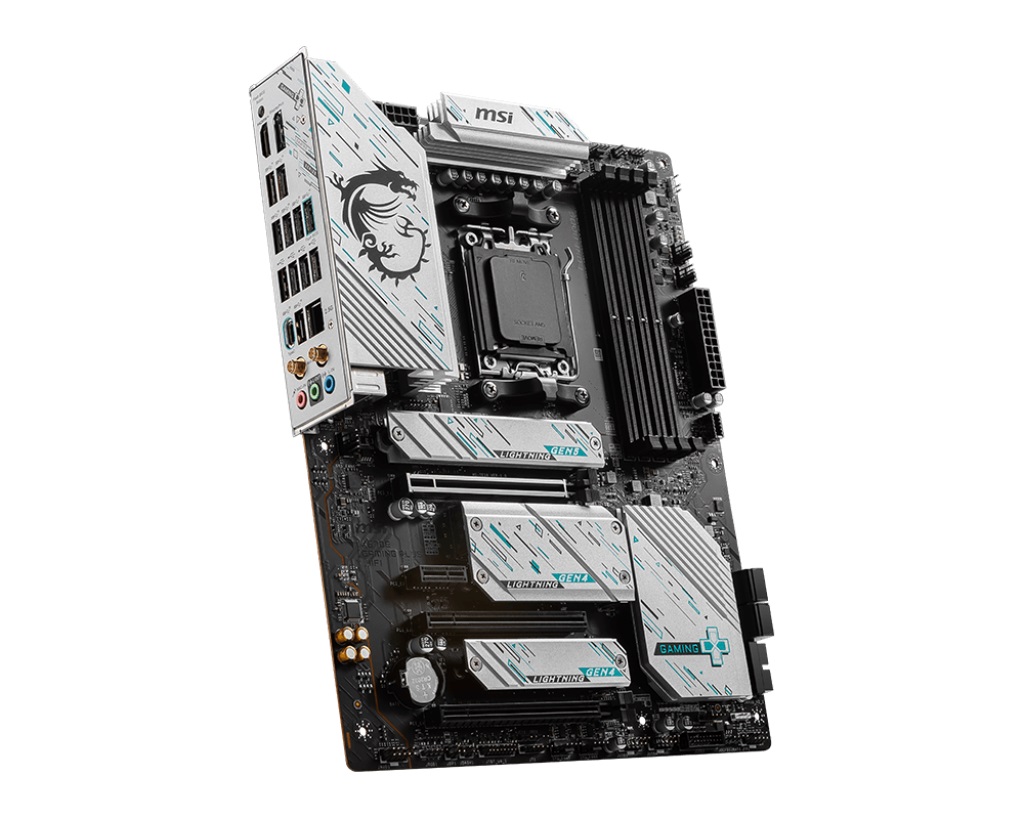

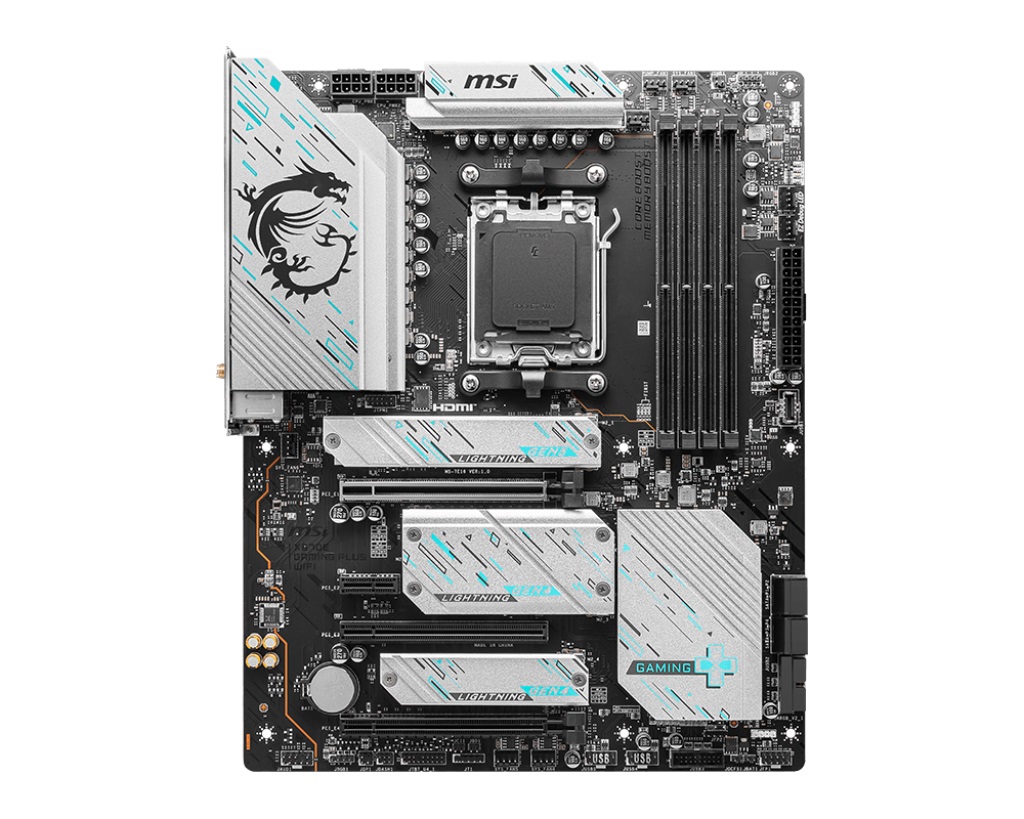

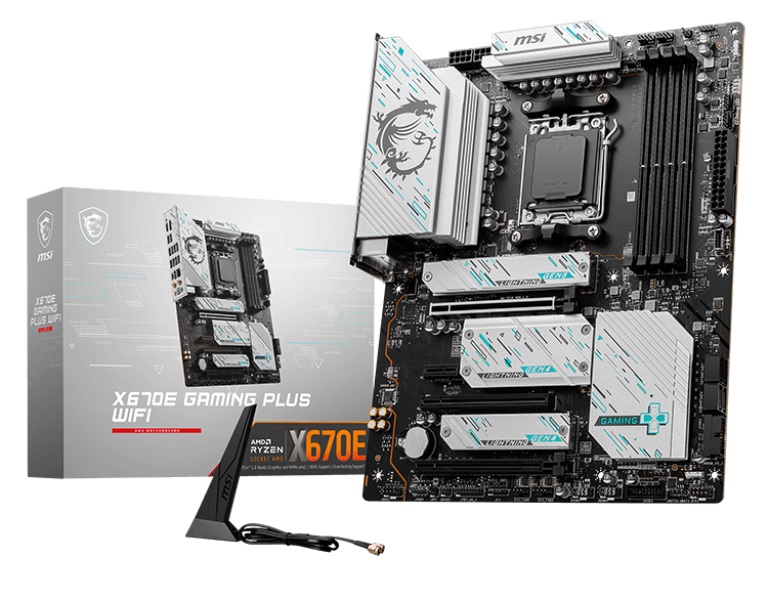

MSI X670E GAMING PLUS WIFI AM5 Socket
(Stokta Yok)
| Marka: MSI |
| Model: X670E GAMING PLUS WIFI |
| Socket Türü: Socket AM5 |
| Vga Türü: PCIExp |
| Ram Türü: DDR5 |
| Çipset: AMD X670 |
| BELLEK ÖZELLİKLERİ: |
| 4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
| Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ |
| 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ |
| 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
| Max. overclocking frequency: |
| ? 1DPC 1R Max speed up to 7800+ MHz |
| ? 1DPC 2R Max speed up to 6400+ MHz |
| ? 2DPC 1R Max speed up to 6400+ MHz |
| ? 2DPC 2R Max speed up to 5400+ MHz |
| GENİŞLETME SLOTLARI: |
| 3x PCI-E x16 slot |
| Supports x16/x1/x4 |
| ? Supports x16/x1/x4 (For Ryzen? 7000 Series processors) |
| ? Supports x8/x1/x4 (For Ryzen? 7 8700G and Ryzen? 5 8600G processors) |
| ? Supports x4/x1/x4 (For Ryzen? 5 8500G processor) |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| DEPOLAMA: |
| 4x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices |
| M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| 4x SATA 6G |
| ? M2_2 supports PCIe 4.0 x2 speed when Ryzen? 5 8500G is installed |
| SES: |
| Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio |
| LAN: |
| Realtek® RTL8125BG 2.5Gbps LAN |
| WiFi: |
| AMD Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX |
| Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands |
| Supports 802.11 a/ b/ g/ n/ ac/ ax |
| USB: |
| 4x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 4x USB 5Gbps Type A (Rear) |
| 4x USB 5Gbps Type A (Front) |
| 3x USB 10Gbps Type A (Rear) |
| 1x USB 10Gbps Type C (Front) |
| 1x USB 20Gbps Type C (Rear) |
| Garanti: 36 Ay |
