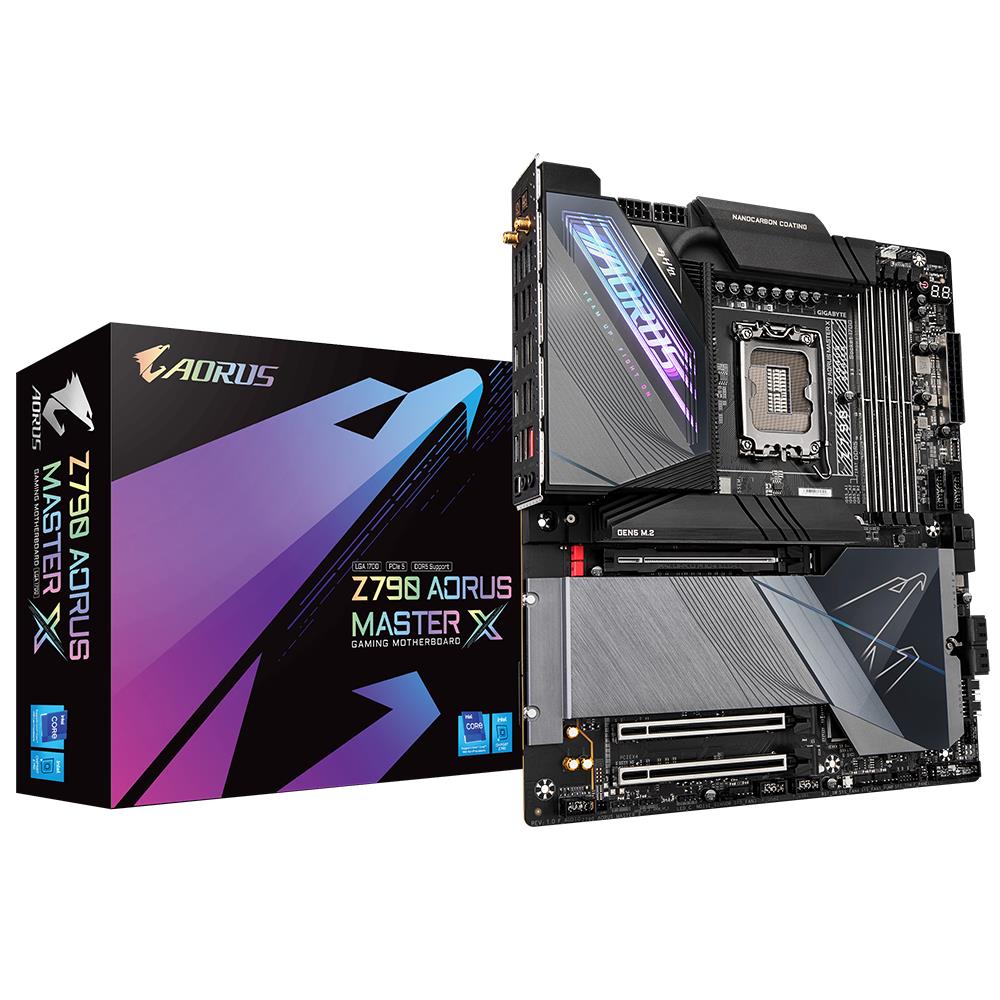

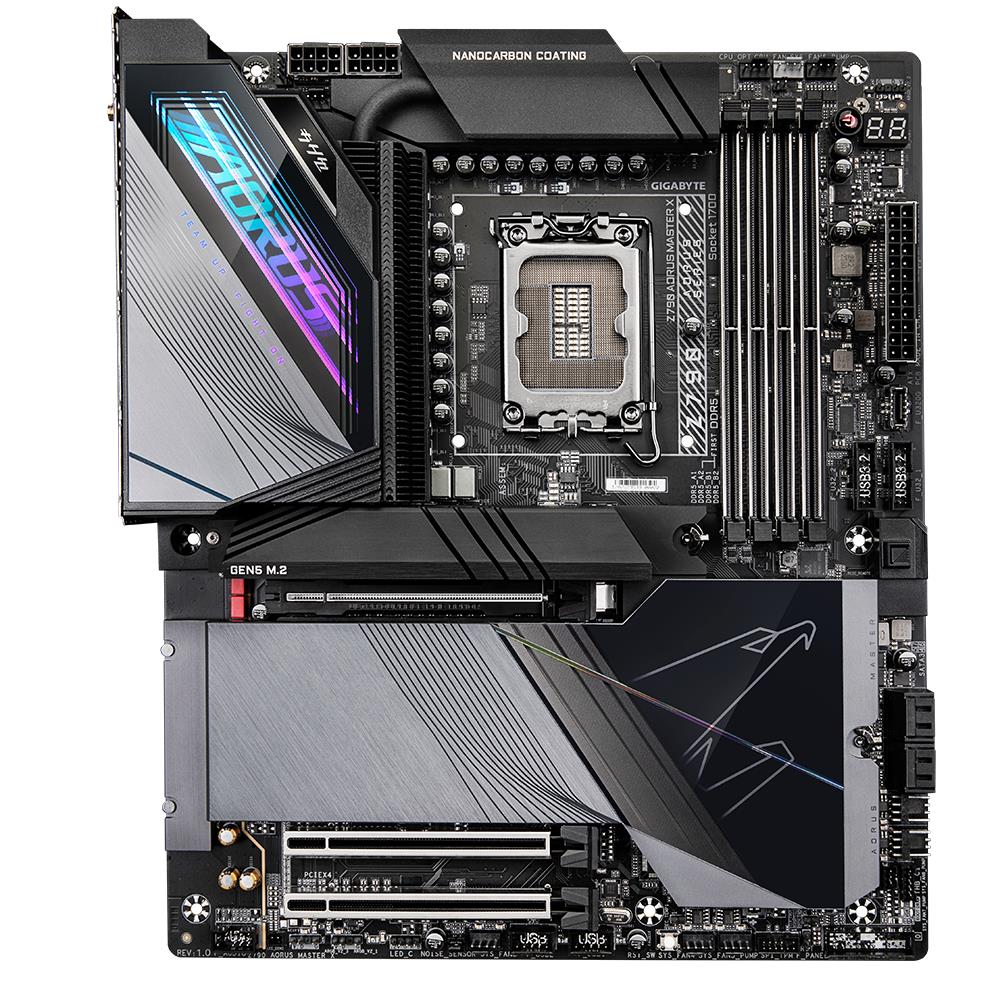

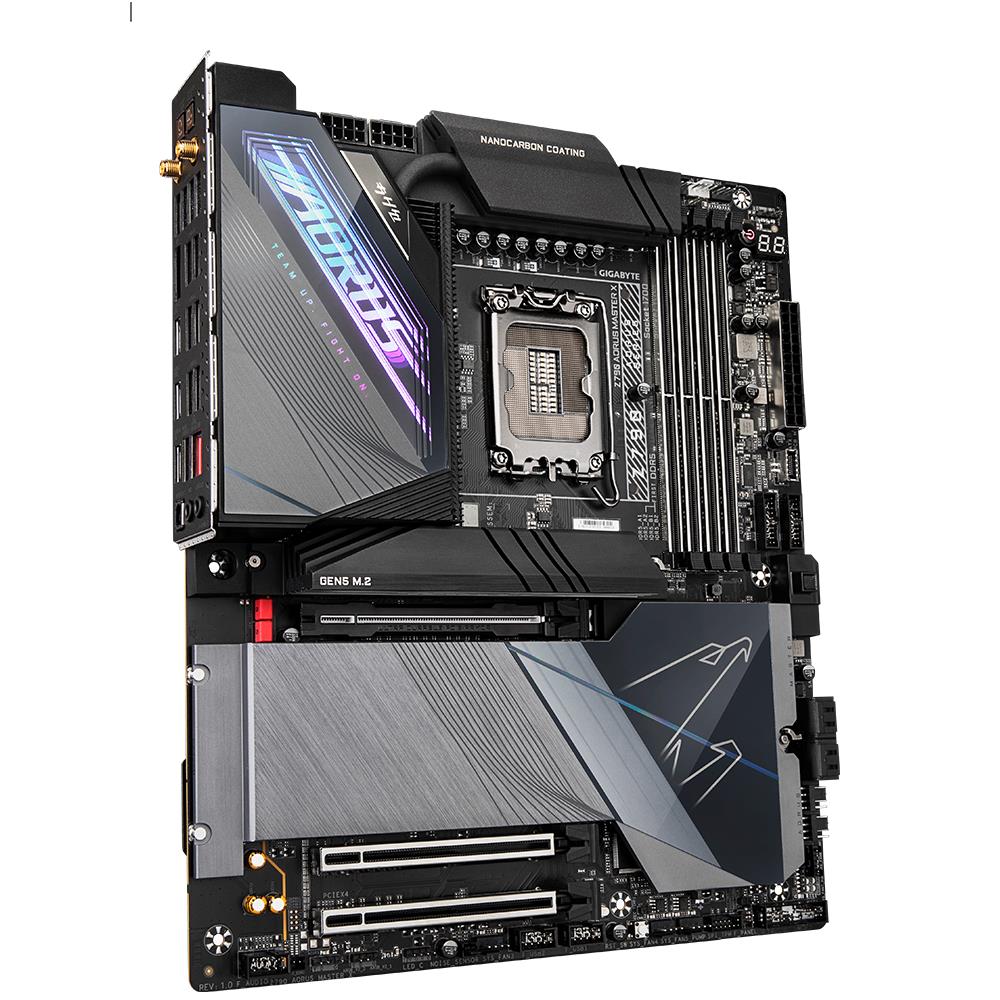

GIGABYTE Z790 AORUS MASTER X
Model: Z790 AORUS MASTER X | ||||||||||||
Socket Türü: LGA 1700 | ||||||||||||
Vga Türü: PCIExp | ||||||||||||
Ram Türü: DDR5 | ||||||||||||
Çipset: INTEL Z790 | ||||||||||||
BELLEK: | ||||||||||||
DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / | ||||||||||||
7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / | ||||||||||||
6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / | ||||||||||||
5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules | ||||||||||||
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture | ||||||||||||
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | ||||||||||||
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | ||||||||||||
Support for Extreme Memory Profile (XMP) memory modules | ||||||||||||
GENİŞLETME SLOTLARI: | ||||||||||||
CPU: | ||||||||||||
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | ||||||||||||
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | ||||||||||||
* The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. | ||||||||||||
Chipset: | ||||||||||||
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) | ||||||||||||
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | ||||||||||||
DEPOLAMA: | ||||||||||||
CPU: | ||||||||||||
- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) | ||||||||||||
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) | ||||||||||||
Chipset: | ||||||||||||
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) | ||||||||||||
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) | ||||||||||||
- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | ||||||||||||
- 4 x SATA 6Gb/s connectors | ||||||||||||
LAN: | ||||||||||||
Marvell AQtion AQC113C 10GbE LAN chip | ||||||||||||
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) | ||||||||||||
KABLOSUZ: | ||||||||||||
Qualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.0) | ||||||||||||
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | ||||||||||||
- BLUETOOTH 5.3 | ||||||||||||
- Support for 11be 320MHz wireless standard | ||||||||||||
MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1) | ||||||||||||
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | ||||||||||||
- BLUETOOTH 5.3 | ||||||||||||
- Support for 11be 320MHz wireless standard | ||||||||||||
Intel® Wi-Fi 7 BE200 (PCB rev. 1.2) | ||||||||||||
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | ||||||||||||
- BLUETOOTH 5.3 | ||||||||||||
- Support for 11be 320MHz wireless standard | ||||||||||||
(Actual data rate may vary depending on environment and equipment.) | ||||||||||||
SES:
Realtek ALC1220-VB CODEC |
* The front panel line out jack supports DSD audio. |
|
ESS ES9118 DAC chip |
Support for DTS:X® Ultra |
High Definition Audio |
2/4/5.1-channel |
|
BOYUTLAR: |
E-ATX Form Factor; 30.5cm x 26.0cm |
|
Garanti: 36 Ay Yetkili Servisinde | |
