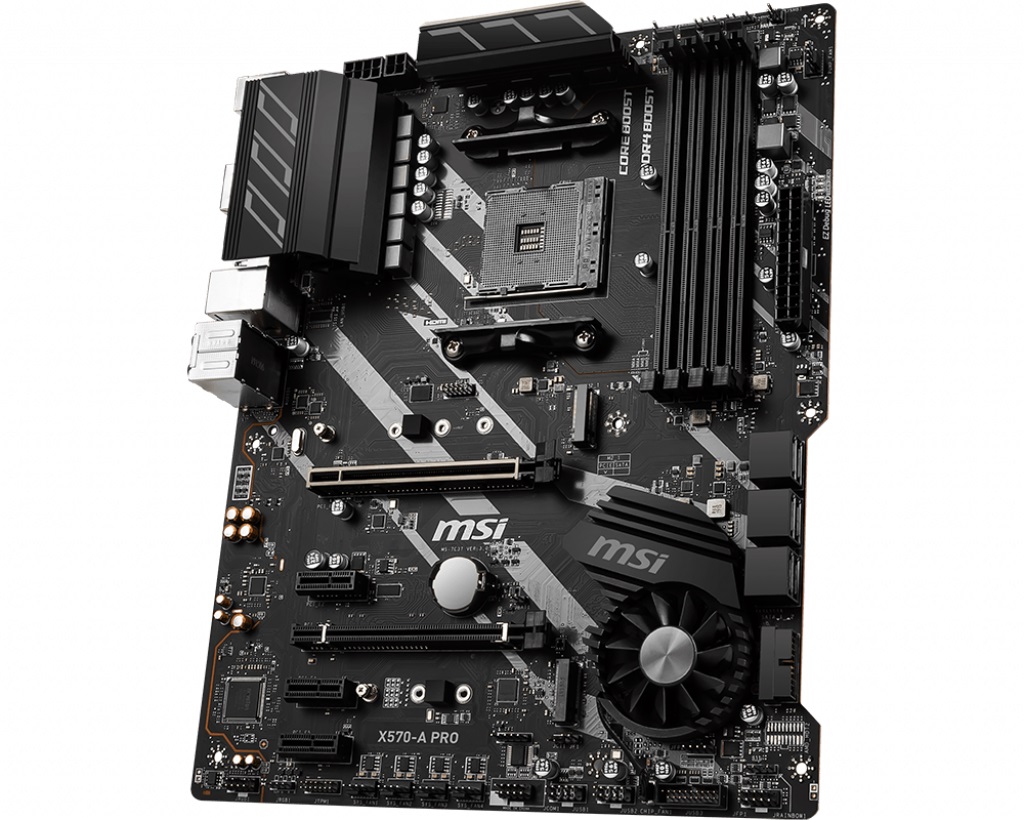

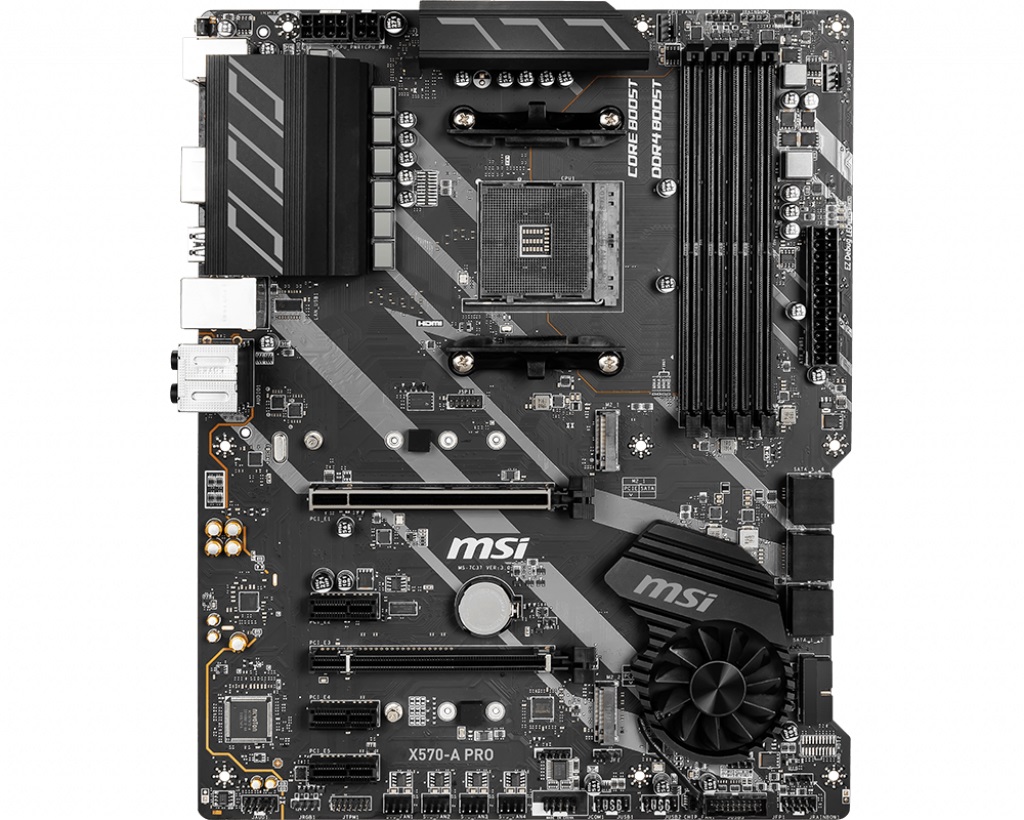

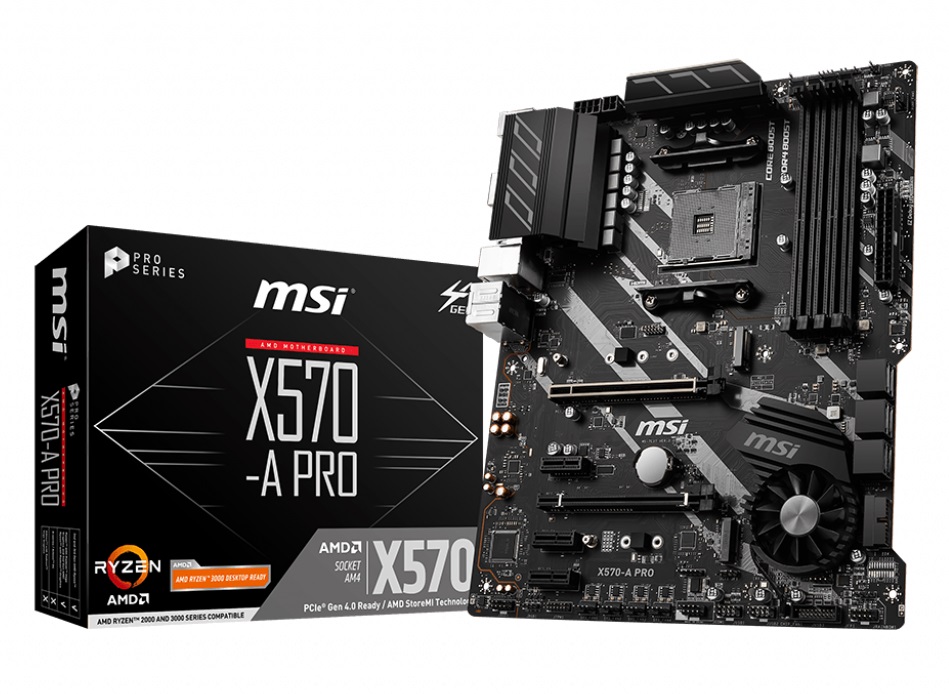

MSI X570-A PRO
Socket Türü: Socket AM4 |
Vga Türü: PCIExp |
Ram Türü: DDR4 |
Çipset: AMD X570 |
BELLEK ÖZELLİKLERİ: |
4 DDR4 memory slots, support up to 128GB (depending on the processor)1 |
3rd Gen AMD Ryzen? Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE |
2nd Gen AMD Ryzen? Processors, 1st and 2nd Gen AMD Ryzen? with Radeon? Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE |
Dual channel memory architecture |
Supports non-ECC UDIMM memory |
ports ECC UDIMM memory (non-ECC mode) |
Supports un-buffered memory |
GENİŞLETME SLOTLARI: |
1 x PCIe 4.0/ 3.0 x16 slot (PCI_E1) |
3rd Gen AMD Ryzen? support PCIe 4.0 x16 mode |
2nd Gen AMD Ryzen? support PCIe 3.0 x16 mode |
Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics support PCIe 3.0 x8 mode |
1 x PCIe 4.0/ 3.0 x16 slot (PCI_E3, supports x4 mode) |
3 x PCIe 3.0 x1 slots1 |
PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot. |
The speeds may vary for different devices |
MULTI GPU: |
Supports 2-Way AMD® CrossFire? Technology |
DEPOLAMA: |
6 x SATA 6Gb/s ports |
2 x M.2 slot (Key M) |
M2_1 slot (from AMD® Processor) |
Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen?) |
Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen?/ Ryzen? with Radeon? Vega Graphics and 2nd Gen AMD Ryzen? with Radeon? Graphics) |
Supports 2242/ 2260/ 2280/ 22110 storage devices |
M2_2 slot (from AMD® X570 Chipset) |
Supports PCIe 3.0 x4 and SATA 6Gb/s |
Supports 2242/ 2260/ 2280 storage devices |
RAID: |
AMD X570 Chipset |
Supports RAID 0, RAID 1 and RAID 10 |
SES: |
Realtek ALC1220 Codec |
7.1-Channel High Definition Audio |
Supports Optical S/PDIF output |
LAN: |
1 x Realtek® 8111H Gigabit LAN Controller |
BOYUTLAR: |
12 in. x 9.6 in. (30.4 cm x 24.3 cm) |
ATX Form Factor |
Garanti: 36 Ay |
Taksit | Axess | Bonus | Maximum | Wold | Paraf | Ziraat Combo |
---|---|---|---|---|---|---|
3 | 8674 TL | 8754 TL | 8674 TL | 8674 TL | 8674 TL | 8674 TL |
6 | 8995 TL | 9397 TL | 9397 TL | 9397 TL | 9397 TL | 9397 TL |
9 | 10040 TL | 10441 TL | 10441 TL | 10441 TL | 10441 TL | 10441 TL |
